Hydraulic Ring Press

Product Code: EKE 915

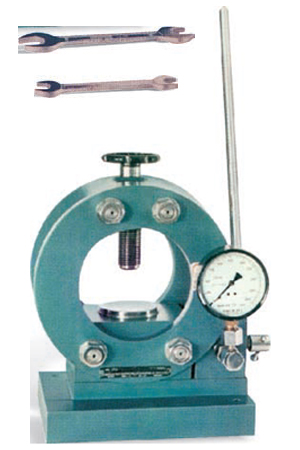

Used for making pellets of graphite or Infra Red transmitting materials. For elemental analysis of Cement, Slags or Refractories by X-ray Fluorescence or Emission Spectrometry, the samples are mixed with graphite powder and pellets are made in the Ring Press, compressing at desired pressures . The pellets are suitable for placing in the analysing instruments. Similarly, in the analysis of samples in the powder form by the Infra Red Spectrophotometers, these are mixed with NaCI or IR transmitting materials and pellets made as above and placed in the instruments for analysis. The Ring Press is a portable bench model and can be used on a sturdy table top. It is fitted with a load measuring gauge calibrated for 0-250 kN. and also fitted with a pressure release valve for removing pellets. It is supplied with dies for different pellet sizes, according to the requirements.
Details

• EKE 91501 Pellet Die, 10 mm dia
• EKE 91502 Pellet Die, 13 mm dia
• EKE 91503 Pellet Die, 15 mm dia
• EKE 91504 Pellet Die, 20 mm dia
• EKE 91505 Pellet Die, 40 mm dia
• EKE 91506 Pellet Die, 45 mm dia

Sample Ejector for different pellet dies available are:

• EKE 91507 Sample Ejector for EKE 91501
• EKE 91508 Sample Ejector for EKE 91502
• EKE 91509 Sample Ejector for EKE 91503
• EKE 91510 Sample Ejector for EKE 91504
• EKE 91511 Sample Ejector for EKE 91505
• EKE 91512 Sample Ejector for EKE 91506
