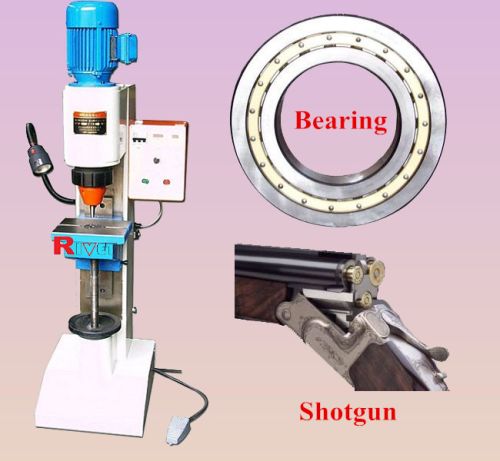

Contact SupplierWe are offering hydraulic riveting machine jm9 (radial riveting machine)
characteristics:
a.medium sized with vertical style
b.max. Processing dia.φ9mm (solid steel rivet)
c.hydraulic drive with stepless regulation
d.security mask covered rotating part
e.workbench adjustable with large space available
f.setting riveting time as will, manual ,auto switching
g.can reserve hydraulic connector for fixture
h.hydraulic system and fuselage can be separated scope of application: instrumentation, hardware, appliances etc
customized available
1.max riveting diameter ф 9mm (solid steel rivet )
2.max riveting pressure 14kn
3.stroke 30mm
4.available working space 270mm
5.throat depth 135mm
6.riveting tool length 50mm
7.eccentric angle 4°
8.motive force hydraulic
9.oil-tank volume 60liters
10.pressure oil brand iso 46#
11.area of work bench 360mm×290mm
12.power 0.92kw
13.physical size 700mm×500mm×1417mm
14.net weight 250kg
