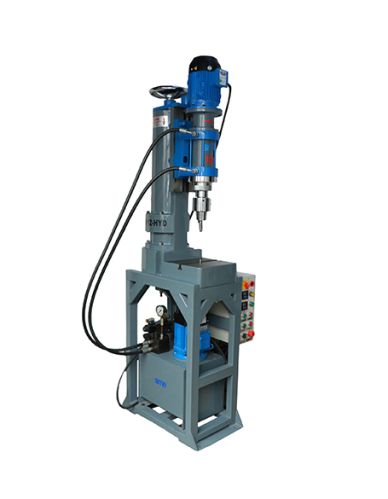

Contact SupplierOur valuable patrons can buy from us a high-class plethora of Hydraulic Riveting Machines that is fabricated using superior-quality basic material and hi-tech technology. The offered product is a compact in size and lightweight. Due to its several qualitative merits, this product is highly essential in the market. Besides, provided choice can be purchased from us in technical provisions and several designs.
Features:
Additional Information:
Model No. | RIV12-HYD | RIV16-HYD |
Riveting Capacity | up to 12 mm | up to 16 mm |
Throat Depth | 150 mm | 150/200 mm |
Shut Height(max) | 180 mm | 200 mm |
Stroke Adjustment | 45 mm | 50 mm |
Axial Force | 1800 kg. | 3000 kg. |
Cycle Time Adjst | 0-9.99 sec. | 0-9.99 sec. |
Base Area | 300×275 | 300×375 |
Machine Size | 300x575x1250 | 300x700x1500 |
Motor(H.p) | 1.5+1.5 | 2.0+2.0 |
Air Pressure | 10-20 kg./cm2 HYD PR. | 20-30 kg./cm2 HYD PR. |
