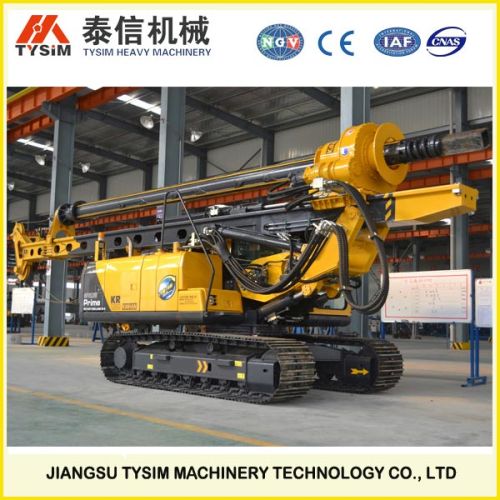

Hydraulic Rotary Driling Rig

we are offering hydraulic rotary drilling rig . 1 pile drilling machine kr90c  is small sized pile machinery by tysim designed.
2 leading the overall transport full hydraulic and can change transport state into working state rapidly.
3 use an imported caterpillar 318d electrical fuel injection turbo engine (euiii).
4 high performance hydraulic system and components from international brands.
5 after-sale service is simple, with low failure rate.
6 makes the money for you and completes the construction requirements.
7 low noise and emissions.
8 high-performance hydraulic system and control system that guarantee efficiency.
torque 90 kn.m
max. diameter 1000 mm
max. drilling depth 32 m
speed of rotation 8~30 rpm
max. crowd pressure 90 kn
max. crowd pull 120 kn
main winch line pull 90 kn
main winch line speed 72 mmin
auxiliary winch line pull 20 kn
auxiliary winch line speed 40 mmin
stroke(crowd system) 3200 mm
mast inclination(lateral) ±3°
mast inclination(forward) 3°
max. operating pressure 34.3 mpa
pilot pressure 3.9 mpa
travel speed 2.8 kmh
traction force 98 kn
operating height 14660 mm
operating width 2700 mm
transport height 3355 mm
transport width 2700 mm
transport length 12270 mm
overall weight 28 t
