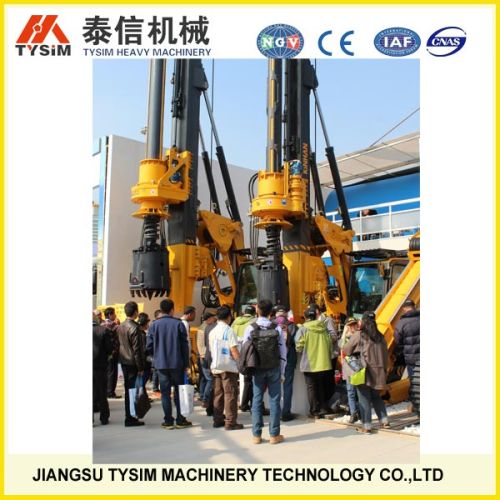

Hydraulic Rotary Drilling Rig For Foundation Construction

We offer hydraulic rotary drilling rig.
Torque 60 kN.m
Max. Diameter 1000 mm
Max. Drilling depth 22 m(4 node)16 m(3 node)
Speed of rotation 8~30 rpm
Max. Crowd pressure 90 kN
Max. Crowd pull 100 kN
Main winch line pull 80 kN
Main winch line speed 70 mmin
Auxiliary winch line pull 30 kN
Auxiliary winch line speed 40 mmin
Stroke(crowd system) 3000 mm
Mast inclination(lateral) ±3°
Mast inclination(forward) 4°
Max. Operating pressure 35 MPa
Pilot pressure 4.1 MPa
Travel speed 3 kmh
Traction force 114 kN
Operating height 11200 mm
Operating width 2490 mm
Transport height 3300 mm
Transport width 2490 mm
Transport length 9970 mm
Overall weight 22 t
1 Pile drilling machine KR60C is small sized pile machinery by TYSIM designed.
2 Leading the overall transport Full Hydraulic and can change transport state into working state rapidly.
3 Use an imported Caterpillar 312D electrical fuel injection turbo engine (EUIII).
4 High performance hydraulic system and components from international brands.
5 After-sale service is simple, with low failure rate.
6 Makes the money for you and completes the construction requirements.
7 Low noise and emissions.
8 High-performance hydraulic system and control system that guarantee efficiency.
