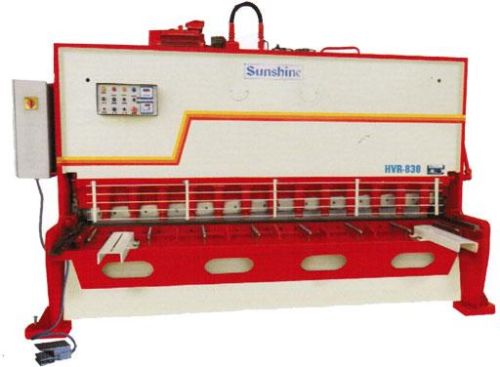

Hydraulic Shearing Machine

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

We Are Occupied In Manufacturing Superior Quality Of Hydraulic Shearing Machine In Various Shapes & Sizes. Hydraulic Sheet Metal Shearing Machine Is Made-Up From High-Grade Components That Assure....

View More Details

Send Enquiry

Company Information

Sunshine Hydraulics

Kathwada, Ahmedabad, Gujarat

View Number

Member Since 9 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

We Are Occupied In Manufacturing Superior Quality Of Hydraulic Shearing Machine In Various Shapes & Sizes. Hydraulic Sheet Metal Shearing Machine Is Made-Up From High-Grade Components That Assure High Strength And Toughness To The Structure. Moreover, We Provide Hydraulic Shearing Machine At The Most Reasonable Price In The Industry.

FEATURES :

Mono Block Welded Steel
Easy to use and convenient to operate
Electronically adjustable rake angles
Rapid cutting facility
Adjustable cutting clamp
Activation from console and movable foot cut switch
Sheet clamped hydraulically before cut starts
Stroke length – position can be set for short jobs
Beam returns on releasing foot switch for smaller cuts

OTHER DETAILS :

Item Code : HVR-345

DESIGN FEATURES :

Mono Block Welded Steel rigid to deflection tensile movement of high tensile.
Ease of accurate gap adjustment of blades for bur-free cuts.
Polymide surfaced Hydraulic Hold down cylinders to prevent sliding of the plates during cutting operation.
Motorized back gauge with electronic digital readout.
Electronically adjustment RAKE ANGLE as per material of thickness for twist free cuts.
Synchronized Beam guided system for constant gap between blades.
Extra capacity to cut Hard-thicker plate than nominal capacity.
Blades produced from High Alloying Steel with functional four sides.
Adjustable Cutting & Clamping force for quality cutting & power saving.
Rapid cutting of short pieces by electrical stroke adjustment system.

STANDARD FEATURES & ACCESSORIES

Moving beam Synchronized by differential cylinders.
Hardened rollers guide beam for constant blade gap.
Blade gap easily adjustable by calibrated levers.
Rake angle adjustable to suit thickness and material.
Activation from consol and movable foot switch.
Sheet clamped Hydraulically before cut starts.
Stroke length - position can be set for short jobs.
Beam returns on releasing foot switch for smaller cuts.
Cutting area illuminated for clear view of ends.
First two hold downs spaced closer at both ends.
Squaring arm 1000mm at left with hardened liners.
Squaring arm 600mm at right helps distribute wear.
Front gauging by stopper-scale on squaring arm.
Hardened rods on table for safe easier feeding.
Two front supports for supporting longer plates.
Front operated motorized back gauge with NC type DRO 1000 mm
Compact, Low maintenance of silent Hydraulic system.
Digital stroke - counter.
HVR 315, HVR 320, HVR 325, HVR 330 have sheet supports, manual backgauge & left squaring arm of 600mm length.

OPTIONAL ACCESSORIES

Automatic contact shearing.
Hydraulic rear sheet support.
NC backgauge with ballscrew.

Model	Shearing Length (mm)	Nominal Rake Angle in MS	Maximum Rake Angle in MS	Nominal Rake Angle in SS	Maximum Rake Angle in SS	Rake Angle	Strokes/Min at Min. & Max Rake Angle	Hold Downs	Power HP	Packing Dia. mm (LxWxH)	Shearing Length (mm)
HVR225	2500	2	3.15	1	1.6	1°	22-10	13	3	2900x1600x1500	2500
HVR230	3000	2	3.15	1	1.6	1°	18-8	15	3	3400x1600x1500	2800
HVR315	1500	3.15	4	2	3	1 °15’	24-10	8	5	2250x1850x2050	2000
HVR325	2500	3.15	4	2	3	1°15’	28-13	13	5	3200x1850x1950	3500
HVR330	3000	3.15	4	2	3	1°15’	24-9	15	5	3700x1850x1950	4000
HVR340	4000	3.15	4	2	3	1°15'	24-9	20	7.5	4750x1950x2050	4800
HVR415	1500	4	6	3	4	1°37’	24-10	8	5	2250x1850x2050	3200
HVR420	2000	4	6	3	4	1°37’	24-10	11	7.5	2750x1850x2050	3500
HVR425	2500	4	6	3	4	1°37’	22-8	13	7.5	3300x2250x2400	5000
HVR430	3000	4	6	3	4	1°37’	22-8	15	10	3750x2350x2500	6000
HVR440	4000	4	6	3	4	1°45’	18-6	20	10	4500x2250x2400	8100
HVR615	1500	6	8	4	6	1°45'	24-8	8	10	2250x1900x2100	4000
HVR620	2000	6	8	4	6	1°45’	22-7	11	10	2750x1900x2100	4300
HVR625	2500	6	8	4	6	1°45’	28-8	13	15	3300x2250x2500	6000
HVR630	3000	6	8	4	6	1°45’	24-6	15	15	3850x2350x2550	6800
HVR640	4000	6	8	4	6	2°	24-6	20	20	4850x2350x2550	8200
HVR815	1500	8	10	6	8	2°	22-10	8	15	2250x2050x2200	5200
HVR820	2000	8	10	6	8	2°	18-8	11	15	2750x2050x2200	6000
HVR825	2500	8	10	6	8	2°	24-8	13	20	3300x2350x2600	7500
HVR830	3000	8	10	6	8	2°	20-6	15	20	3800x2350x2600	9000
HVR840	4000	8	10	6	8	2°	20-8	20	25	4850x2450x2700	12500
HVR1015	1500	10	13	8	10	2°	20-10	8	15	2250x2050x2300	6000
HVR1020	2000	10	13	8	10	2°	18-0	11	15	2750x2050x2300	7000
HVR1025	2500	10	13	8	10	2°	24-8	13	20	3300x2500x2800	9000
HVR1030	3000	10	13	8	10	2°	20-6	15	20	3800x2500x2800	11500
HVR1040	4000	10	13	8	10	2°	18-6	20	30	4850x2600x2900	15000
HVR1320	2000	13	16	10	13	2°	13-5	11	20	2750x2200x2500	7000
HVR1325	2500	13	16	10	13	2°	15-10	13	25	3350x2600x2800	9000
HVR1330	3000	13	16	10	13	2°	12-6	15	25	3800x2600x2800	12000
HVR1340	4000	13	16	10	13	2°	10-4	20	30	4900x2650x2900	15500
HVR1625	2500	16	20	13	16	2°	15-8	13	30	3500x2600x2900	15000
HVR1630	3000	16	20	13	16	2°	12-6	16	30	4000x2600x2900	1700,0
HVR1640	4000	16	20	13	16	2°	10-4	20	30	5100x2750x2900	20000
HVR2025	2500	20	25	16	20	2°	15-8	13	40	3500x2750x3000	18000
HVR2030	3000	20	25	16	20	2°	12-6	16	40	4000x2750x3000	20000
