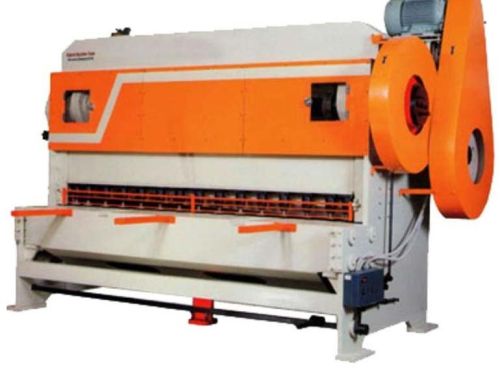

Hydraulic Shearing Machine

Supply TypeManufacturer, Supplier, Retailer
Preferred Buyer Location All over the world

We introduce to our customers the most advanced Hydraulic Shearing Machine that has been developed using optimum quality raw material. This Hydraulic Shearing Machine is used widely for cutting large metal sheets. We provide our customers Hydraulic Shearing Machine with the dimensions of 1250x4mm to 6000x25mm. Our range of Hydraulic Shearing Machine is robust and durable with stable and welded frames. We are an eminent Manufacturer and supplier of Hydraulic Shearing Machine in Rajkot, Gujarat. We offer these Hydraulic Shearing Machines at market leading prices.

View More Details

Send Enquiry

Product Details

Specifications

Size	1270x6	1525x6	2030x6	2540x6	3125x6	1525x8	2030x8	2540x8	3125x8	2030x10	2540x10	3125x10	2030x13	2540x13	3125x13
Cutting Cap. Thick of M.S.	6.0	6.0	6.0	6.0	6.0	8.0	8.0	8.0	8.0	10.0	10.0	10.0	13.0	13.0	13.0
Cutting Length	1270	1525	2030	2540	3125	1525	2030	2540	3125	2030	2540	3125	2030	2540	3125
Depth of Throat	100	100	100	100	100	100	100	100	100	100	100	100	100	100	100
Standard Front Gauge	500	500	500	500	500	500	500	500	500	500	500	500	500	500	500
Standard Rear Gauge	7500	7500	7500	7500	7500	7500	7500	7500	7500	7500	7500	7500	7500	7500	7500
Table Height	800	800	800	800	800	800	800	800	800	800	800	800	800	800	800
Table Width	500	500	500	500	500	500	500	500	500	500	500	500	500	500	500
Blade Length	1270	1525	2030	2540	3125	1525	2030	2540	3125	2030	2540	3125	2030	2540	3125
Blade Width	75	75	75	75	75	75	75	75	75	100	100	100	100	100	100
Blade Thickness	18	18	22	22	22	22	22	22	22	25	25	25	28	28	28
Stroke Per Minute	25	25	20	20	20	20	20	20	20	20	20	20	20	20	20
Hold Down to knife Edge	45	45	45	50	50	50	50	50	50	75	75	75	75	75	75
Machine Legnth	2350	2575	3100	3500	4250	2800	3150	3600	4350	3225	3650	4300	3350	3600	4400
Machine Width	2150	2150	2200	2200	2200	2000	2150	2000	2250	2250	2450	2550	2500	2700	2800
Machine Height	2600	2600	2700	2700	2700	2500	2600	2650	2700	2700	2750	2800	2800	2900	3000
Main Motor HP/Kw	7.5/5.6	10/7.7	10/7.7	12/9.7	15/11.2	12.5/	12.5/.9.7	15/11.2	20/15	15/11.2	20/15	25/18.7	20/15	25/18.7	30/22.5
