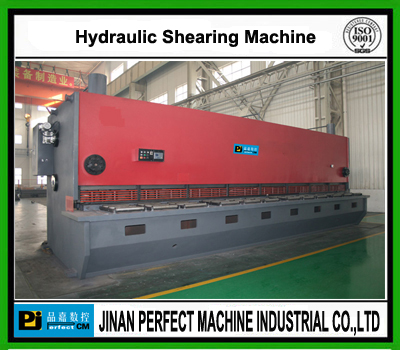

Hydraulic Shearing Machine, Certification : ISO9001

We are offering cnc hydraulic shearing machine (model qc11k-16x2500)
performance & usage:
this machine can shear maximum thickness of 16mm, width ≤ 2500mm of plate steel, the tensile strength of the shearing material is subject to 520mpa(stainless steel). If require shearing other tensile strength materials, should converse into the thickness of shearing plate steel. This machine adopts steel plate welding structure, tool holder's shear is hydraulic driven nitrogen return travel, its working is smooth& reliable; small size, light weight & good rigidity.
Specifications:
no.
Specifications
model qc11k-16x2500
1
max.shearing thickness
16 mm
2
max.shearing width
2500 mm
3
plate strength limit (stainless steel)
≤520 mpa
4
shear angle
0.5～2.5°
5
stroke times
12 timesmin
6
max. Stroke range of back gauge
1000 mm
7
the height between working table & ground
950 mm
8
main motor power
22 kw
9
machine weight
38 t
10
overall size
3293x2273x2510 mm
Any need, please inquiry us freely.
