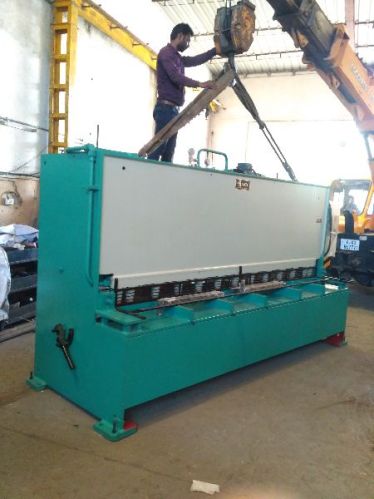

Hydraulic Shearing Machines

MaterialPrime Quality Raw Material
PurityHeavy Duty,Variable Rake Angle Shears,High Durability,Safe For Operator
Number Of FlowerHydraulic Shearing Machine
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

We introduce to customers some of the finest hydraulic shearing machines. These heavy duty hydraulic shearing machines strictly adhere to the set international standards. Moreover, these machines perform flawlessly and are highly safe for the operator. These machines are manufactured using prime quality raw material to provide them with high durability. All these features have made us the important shearing machines suppliers of india. hydraulic variable rake angle shears

View More Details

Send Enquiry

Specifications

Model	Shearing Lenght mm	Shear Thic. Rake Angle/(Min./Max.) M.S.	S.S.	Rake Angle	Rake Angle Range	Strokes/Minute at Min. & Max. Rake Angle	Holddowns	Holding Force Kgs.	Power H.P.	Over all Diamensions in mm (L x W x H)	Approx.Weight Kgs.
HVR325	2500	3.15 / 4	2 / 3	1⁰15'	0.5-2⁰	28-13	13	2500	5	3150 x 2000 x 2400	3800
HVR330	3000	3.15 / 4	2 / 3	1⁰15'	0.5-2⁰	24-9	16	2500	5	3500 x 2000 x 2400	4400
HVR412	1250	4 / 6	3 / 4	1⁰37'	0.5-3⁰	33-17	5	4000	5	2000 x 2000 x 2400	2700
HVR415	1500	4 / 6	3 / 4	1⁰37'	0.5-3⁰	30-15	8	4500	5	2250 x 2000 x 2400	3200
HVR420	2000	4 / 6	3 / 4	1⁰37'	0.5-3⁰	28-13	11	6200	7.5	2750 x 2000 x 2400	3500
HVR425	2500	4 / 6	3 / 4	1⁰37'	0.5-3⁰	26-8	13	8000	7.5	3400 x 2350 x 2450	5200
HVR430	3000	4 / 6	3 / 4	1⁰37'	0.5-3⁰	24-6	16	10000	10	4000 x 2350 x 2450	6000
HVR440	4000	4 / 6	3 / 4	1⁰45'	0.5-3⁰	22-6	20	12000	10	4500 x 2350 x 2450	8500
HVR615	1500	6 / 8	4 / 6	1⁰45'	0.5-3⁰	24-8	9	6600	10	2250 x 2350 x 2500	4000
HVR620	2000	6 / 8	4 / 6	1⁰45'	0.5-3⁰	22-7	11	6500	10	2750 x 2350 x 2500	4300
HVR625	2500	6 / 8	4 / 6	1⁰45'	0.5-3⁰	28-8	14	8500	15	3400 x 2350 x 2500	6200
HVR630	3000	6 / 8	4 / 6	1⁰45'	0.5-3⁰	24-6	16	10800	15	4000 x 2350 x 2500	7000
HVR640	4000	6 / 8	4 / 6	2⁰	0.5-3⁰	24-6	20	13600	20	5100 x 2700 x 2800	8400
HVR815	1500	8 / 10	6 / 8	2⁰	0.5-3⁰	22-10	9	10500	15	2250 x 2600 x 2650	5000
HVR820	2000	8 / 10	6 / 8	2⁰	0.5-3⁰	18-8	11	12500	15	2750 x 2600 x 2650	5500
HVR825	2500	8 / 10	6 / 8	2⁰	0.5-3⁰	24-8	14	16300	20	3500 x 2600 x 2650	6800
HVR830	3000	8 / 10	6 / 8	2⁰	0.5-3⁰	20-6	16	18500	20	4200 x 2600 x 2650	7700
HVR840	4000	8 / 10	6 / 8	2⁰	0.5-3⁰	20-8	20	23000	25	5200 x 2900 x 2800	13500
HVR1015	1500	10 / 13	8 / 10	2⁰	0.5-3⁰	20-10	9	10500	15	2250 x 2650 x 2700	5500
HVR1020	2000	10 / 13	8 / 10	2⁰	0.5-3⁰	18-8	11	12600	15	2750 x 2650 x 2700	6000
HVR1025	2500	10 / 13	8 / 10	2⁰	0.5-3⁰	24-8	14	17500	20	3600 x 2650 x 2700	8000
HVR1030	3000	10 / 13	8 / 10	2⁰	0.5-3⁰	20-6	16	20000	20	4200 x 2650 x 2700	10500
HVR1040	4000	10 / 13	8 / 10	2⁰	0.5-3⁰	18-6	20	25000	30	5200 x 2900 x 2900	15200
HVR1320	2000	13 / 16	10 / 13	2⁰	1-3⁰	13-5	11	16500	20	2750 x 2650 x 2950	7000
HVR1325	2500	13 / 16	10 / 13	2⁰	0.5-2⁰	15-10	13	32000	25	3600 x 2650 x 2950	9600
HVR1330	3000	13 / 16	10 / 13	2⁰	0.5-2⁰	12-6	16	37000	25	4200 x 2650 x 2950	11800
HVR1340	4000	13 / 16	10 / 13	2⁰	0.5-2⁰	10-4	20	22000	30	5200 x 3000 x 3050	17800
HVR1620	2000	16 / 20	13 / 16	2⁰	0.5-2⁰	13-7	11	20000	25	2750 x 2950 x 3150	12000
HVR1625	2500	16 / 20	13 / 16	2⁰	0.5-2⁰	15-8	13	40000	30	3600 x 2950 x 3150	12000
HVR1630	3000	16 / 20	13 / 16	2⁰	0.5-2⁰	12-6	16	43500	30	4250 x 2950 x 3150	15300
HVR1640	4000	16 / 20	13 / 16	2⁰	0.5-2⁰	10-4	20	30000	30	5200 x 3050 x 3500	21500
HVR2020	2000	20 / 25	16 / 20	2⁰	0.5-2⁰	16-8	11	32000	40	2900 x 2950 x 3150	17000
HVR2025	2500	20 / 25	16 / 20	2⁰	0.5-2⁰	15-8	13	48000	40	3600 x 2950 x 3150	18000
HVR2030	3000	20 / 25	16 / 20	2⁰	0.5-2⁰	12-6	16	52000	40	4250 x 2950 x 3150	20000
HVR2040	4000	20 / 25	16 / 20	2⁰	0.5-2⁰	10-4	20	30000	50	5200 x 3050 x 3500	2400
