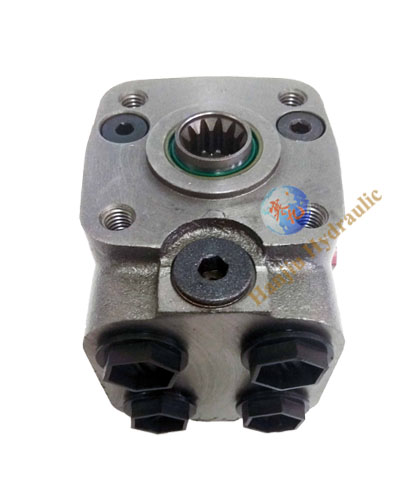

Hydraulic Steering Units 101S

101s series hydraulic steering control unit
1. The same function of the 101 series
2. Including integrated valve (relief valve and checkproof valve)
3. Replace danfoss (ospc), m+s (hku4) series.
4.101s hydraulic steering unit is widely used in the steering control system
such as the steering system of many kinds of industrial and agricultural
mobile machinery forklift,loader,roadroller,tractor,comebine harvester, etc.
5.we produce the products match with the oem number of all machines.
parameters series
101s-*-***-**-*
function code 1,2,4 1,4
displacement (mlr) 50 63 80 100 125 160 200 250 280 315 400
rated flow (lmin) 5 6 8 10 12.5 16 20 25 28 32 40
max.input pressure(mpa) 16
relief valve pressure settings ( mpa) 06,07,08,10,12,14,15,16
shock valve pressure settings ( mpa) 12,13,14,16,18,20,21,22
max.cont.back pressure 2.5
weight(kg) 5.75 5.81 5.89 5.96 6.1 6.3 6.5 6.73 6.91 7.1 7.5
dimension l (mm) 130 132 134 137 140 145 150 156 161 166 176
hydraulic steering unit applications:
construction machinery
agriculture machinery
heavy-duty equipment
forestry machinery
mining equipment
