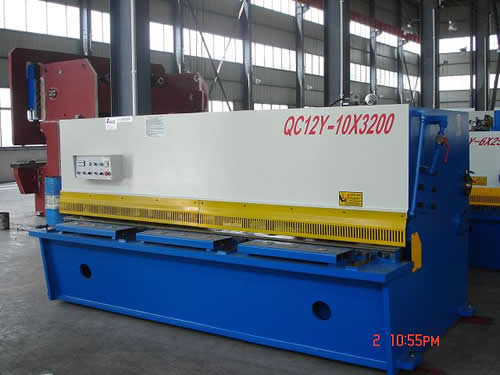

Hydraulic Swing Beam Shear

We are offering qc12y hydraulic swing beam shear.
Performance:
1. The frame of this plate shear is steel-welded construction, vibrating to eliminate stress, with high strength and good rigidity.
2. Hydraulic driven and returning stroke of the hydraulic shears are activated by the accumulator or nitrogen cylinder smoothly and promptly.
3. The sheet is moved easily through rolling ball equipped on worktable and protect the surface of sheet plate.
4. Closed loop control system is composed of nc controller and the encoder. This steel metal shearing machine has the automatic function of inspection and compensation.
5. The back gauge of this steel shearing machine driven by servo motor adopts rolling ball screw, rolling guiding way, so the metal cutting machine's positioning precision could reach 0.10mm.
6. There is a display to count the number of cutting, the stroke of beam could be adjusted stepless.
7. The clearance of blades could be adjusted by hand wheel, the value adjusted is display on the indicating plate.
8. Full hydraulic shearing machine is guarded with safety guard with interlocker to prevent the operator from injured.
