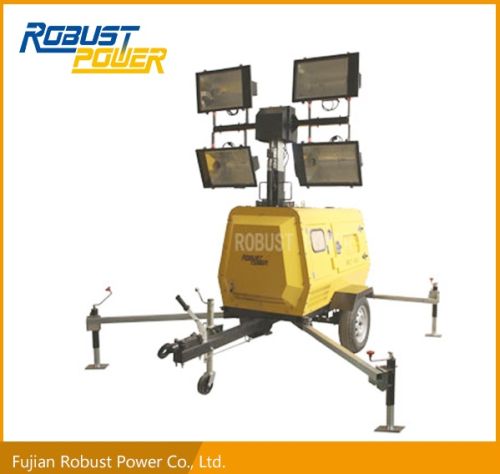

Hydraulic Telescopic Mast Mobile Lighting Tower

The rplt-6800 features a compact yet practical design, equipped with reliable kubota engine powering, 4*1000w metal halide lamps.
Suitable for-events, emergency lighting, car parks ,general industry, auxiliary power supply.
Series 6800
engine kubota d1105-bg diesel
engine type 3cylinders,in line, water cooled
prime power 6.7kw50hzã�â  8.4kw60hz
engine speed 1500rpmã�â ã�â ã�â  1800rpm
engine aspiration natural
alternator stamford pi044f4-pole,brushless,excitation
voltage 120,220,230,240v
insulation h
fuel tank capacity 100l
fuel consumption 2.0lh
maximum working hours 50
control system gu3303 digital controller
engine shutdown protection low oil press, over speed, over current,
high temperature detection, low fuel level
auxiliary sockets 2
total power of lamps 4*1000w
type of lamp metal halide lamp
housing materials galvanization reflector housing
lumen 4*110000
lifetime of lamp 5000 hours
working temperature ã¢ï¿½â¤85
connection protection index ip54
mast type 6-sections telescopic mast 8m
total height 8m
rotation 360 degrees
operate for elevation hydraulic
tow hitch ringball hitch
stabilize supports 4*manual hydraulic
tire size 13inch
brakes manual
dry net weight 930890 kg
extended dimension 4500*1350*1700
shipping package iron pallet 2100*1300*2400mm
carton 520*520*400mm
container load 20gp40hq 612set
color whiteyellowoptional
