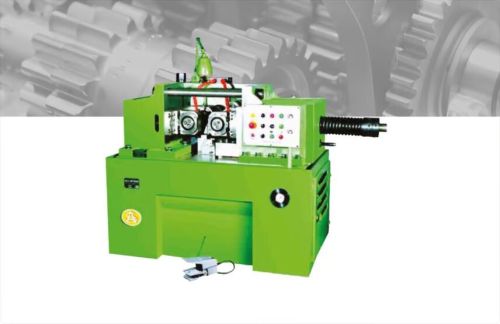

Hydraulic Thread And Form Rolling Machine

Company Information

Ask for more detail from the seller

Report incorrect details

Model	TR-25	TR-30	TR-40	TR-50	TR-80	TR-190	TR-120
Max. Pitch Can Be Rolled (in mm)	3	25	35	4	5	6	8
Max. Dia can be Rolled in Feed (in mm)	25	30	40	50	80	100	120
Max. Dia can be Rolled in Through Feed (in mm)	18	20	28	35	40	50	70
Max. Rolling Length in Feed (in mm)	80	100	100	150	150	150	70
Max. Rolling Length Through Feed	Indefinite	Indefinite	Indefinite	Indefinite	Indefinite	Indefinite	Indefinite
Max. Outer Dia of Thread Rolls (in mm)	120	160	180	200	230	230	230
Spindle Dia (Bore Dia) (in mm)	40	54	54	54	69.85	76.20	76.20
Max. Width of Thread Rolls (in mm)	80	100	100	140	150	150	150
Max. Rolling Force (Tons)	8 Tons	10 Tons	12 Tons	15 Tons	24 Tons	30 Tons	40 Tons
Power For Roll Spindles	3 H.P.	3 H.P.	5 H.P.	7.5 H.P.	10 H.P.	12.5 H.P.	20 H.P.
Power For Roll Spindles	1440rpm	1440rpm	1440rpm	1440rpm	1440rpm	1440rpm	1440rpm
Power For Hydraulic Pump	2 H.P./3 H.P.	2 H.P./3 H.P.	2 H.P./3 H.P.	3 H.P.	3 H.P./7.5 H.P.	5 H.P./7.5 H.P.	7.5 H.P.
	960/1440	960/1440	960/1440	960/1440	960/1440	960/1440	960/1440
	RPM	RPM	RPM	RPM	RPM	RPM	RPM
Power For Coolant Pump	0.1 H.P.	0.1 H.P.	0.1 H.P.	0.1 H.P.	0.1 H.P.	0.1 H.P.	0.1 H.P.
Power For Coolant Pump	3000 RPM	3000 RPM	3000 RPM	3000 RPM	3000 RPM	3000 RPM	3000 RPM
