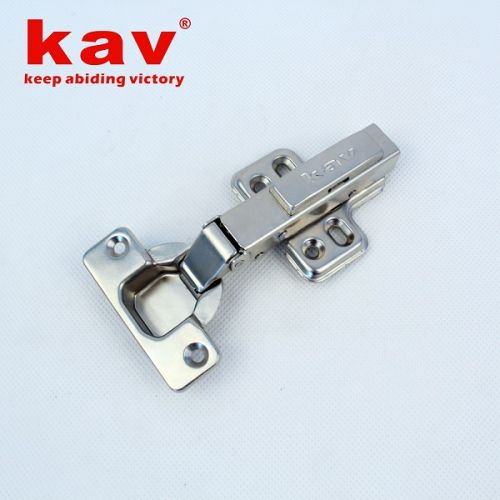

Hydraulic Two Way Soft Closing Concealed Cabinet Hinge

MOQ1000 Set(s)
MaterialCold rolled steel
ApplicationFurniture, cabinet, kitchen, bathroom, etc.
FinishNickel plated
Salt spray testpass 48 hours
Supply TypeManufacturer
Preferred Buyer Location All over the world

Product Details

MaterialCold rolled steel
FinishNickel plated
ApplicationFurniture, cabinet, kitchen, bathroom, etc.
Open-close testpass 50,000 times
Pitch hole48mm, 45mm, 52mm
Thickness of door14—21mm
Depth of hinge cup11.5mm
Salt spray testpass 48 hours
Opening angle95-105 degree
Dia. of hinge cup35mm
OverlayHalf overlay, full overlay, insert(embed, inset)

We are offering hydraulic two way soft closing concealed cabinet hinge.
1.type: door & window hinges
2.place of origin: guangdong, china (mainland)
3.brand name: kav concealed hinge
4.model number: hk235h07(inset), hk235h08(half overlay ), hk235h09(full overlay)
5.finish: hydraulic auto closing concealed hinge
6.main material: cold rolled steel
7.openin angle: 95-105 degree
8.packing: 100pcs or 200pcs
9.application: furniture, cabinet, cupboard, etc.
10.dia. Of hinge cup: 35mm
11.depth of hinge cup: 11.5mm
12.pitch hole: 48mm, 45mm, 52mm
13.door thickness: 14--21mm
14.oem & customizing: oem & customizing is available.
15.strengthened adjustable screw can widen the adjustable ranges and lengthen using life.
16. Widening manganese steel spring can disperse force when the hinge closed. Strengthened spring is 2.5mm thick, while the thickness of normal ones is 1.5mm
