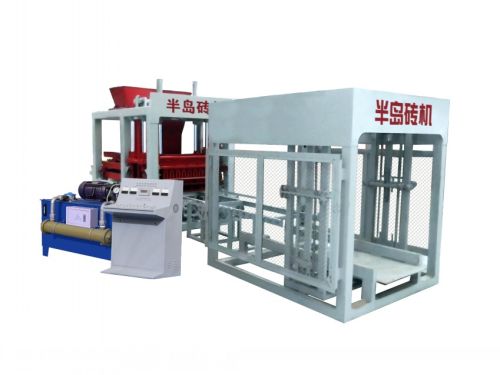

Hydraulic Vibration Brick Making Machine

We are offering hydraulic vibration brick making machine. By applying the germany advanced technology, this kind of machine is featured by full automatic operation, high efficiency and high production capability, quick brick block molding, high density, and energy-saving and environment protection, which can be exempted from sintering. The machine is applicable for medium-scale investment.
main technical characteristics:
1. Multi-purpose, main machine equipped with different molds can produce various kinds of products, such as hollow block, standard brick, color paving brick, perforated brick, etc.
2. As the product from the machine is of high density, it can be immediately stacked if permissible. In addition, as it can avoid drying, save labors, and occupy small space, it can reduce the product cost.
3. As the imported products from german schneider company and japan omron company are selected as hydraulic elements and seals of the hydraulic system, pressure relief and seepage are eliminated.
4. Material distribution system: the unique forced material distribution mechanism and the special-purpose material arch bar applicable to different mold cavities can achieve the forced arch breaking and secondary mixing effects, thus, it can maximally ensure the distribution uniformity with a large amount of flyash added.
5. Vibration system: with application of the special technology-based vibrating shaft arrangement and vibration system and rack separation technology, the vibration can be uniformly distributed in the whole platen; accordingly, it can largely enhance the product performance consistency and stability, deliver higher quality product under conditions of same proportioning, and effectively reduce the noise. In addition, with the unique fixed station design, it can improve the product molding speed and accuracy of the product dimensions.
6. Mold: by applying the one-time precise casting and molding and carburizing treatment, all molds can be separately replaced in use.
technical parameters:
outline dimension 6,525 × 2,040 × 2,470 mm
main vibration mode table vibration
pallet dimension 1,100 × 700 × 30 mm
molding cycle 13-18 seconds/time
main machine power 26 kw
weight of machine 12.6 t
output table (for reference only, the mold can be customized according to the customer’s demands; therefore, the output will change accordingly)
product type spec & size (l × w × h) qty./mold production capability (daily)
hollow block 390 × 190 × 190 mm 8 pcs 15,360 pcs
perforated brick 240 x 115 x 90 mm 20 pcs 38,400 pcs
standard brick 240 x 115 x 53 mm 40 pcs 76,800 pcs
floor tile 200 x 100 x 60 mm 24 pcs 38,400 pcs.
