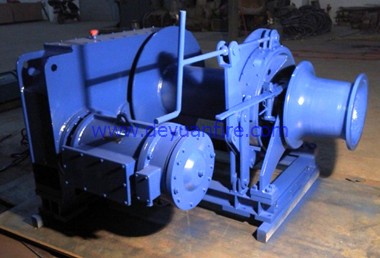

Contact SupplierWe are offering Hydraulic Windlass Mooring Winch, China deyuan marine fitting Co.,ltd are leading supplier of anchor, anchor windlass,anchor chain, made of Grade 2 and Grade 3 steel diameter from 12.5mm to 60mm , accessories, and ship mooring equipment product, which are all certificated by authorized classification societies , including CCS(P.R. China),LR(U.K.),GL(Korea) and RS(Russia) etc.
Type Hawser drum Power
(kw) Dimension(mm)
Load
(kn) Speed
(mmin) Rope size
(mm*m) L B H
DY30 30 15 50*150 18.5 3425 1230 760
DY40 40 15 50*150 18.5 3425 1230 760
DY50 50 15 50*150 22 3730 1300 785
DY60 60 15 65*160 30 4040 1350 810
DY70 70 15 65*160 30 4040 1350 810
DY80 80 15 65*180 37 4285 1450 910
DY100 100 15 65*180 45 4285 1450 910
DY125 125 15 80*200 55 4420 1560 960
DY160 160 15 80*200 75 4720 1560 960
DY200 200 15 100*220 90 4910 1680 1120
DY250 250 15 100*220 110 5110 1680 1120
