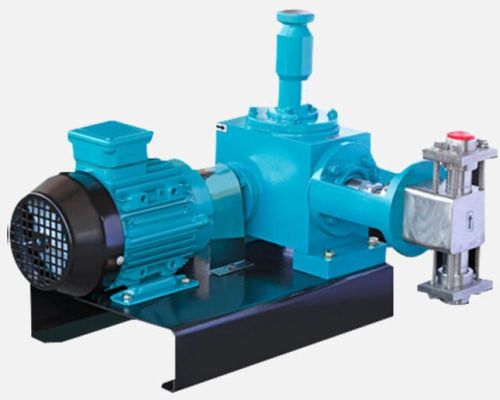

Hydraulically Actuated Diaphragm Pump

Get Latest Price

ApplicationOil & Gas Chemical Detergents Institutes Food & Beverages Fertilizers Nuclear Reactor Water Treatment Paints Steel Textiles Paper Pharmaceuticals Consultancy Agencies Power Petroleum Marine Application Mines
Number Of FlowerHydraulically Actuated Diaphragm Pump
AccessoriesChemical Flow Meters,Pressure Relief Valve,Back Pressure Valve,Anti Syphon Valves,Calibration Cylinders,Electronic Remote Stroke Control,Rota Meters,Suction Strainer,Pulsation Dampeners,Low Level Switch,Hot Or Cold Water Jacketing,Flow / No Flow Switches,
MaterialPTFE,PP,PVDF,AISI 316L,AISI 304,AISI 316,Alloy 20,Hastelloy C,PTFE,PP,PVDF,AISI 316L,AISI 304,AISI 316,Alloy 20,Hastelloy C,Cast Iron,PTFE,SS304,SS316
Supply TypeManufacturer, Exporter, Supplier, Distributor, Trader
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Dosimix Technologies

Bakrol, Ahmedabad, Gujarat

View Number

Member Since 2 Years
Nature of Business Manufacturer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Number Of FlowerHydraulically Actuated Diaphragm Pump
ApplicationOil & Gas Chemical Detergents Institutes Food & Beverages Fertilizers Nuclear Reactor Water Treatment Paints Steel Textiles Paper Pharmaceuticals Consultancy Agencies Power Petroleum Marine Application Mines
Diaphragm TypeHydraulically Balanced Sandwich (Double) With Rupture Detection
AccessoriesChemical Flow Meters,Pressure Relief Valve,Back Pressure Valve,Anti Syphon Valves,Calibration Cylinders,Electronic Remote Stroke Control,Rota Meters,Suction Strainer,Pulsation Dampeners,Low Level Switch,Hot Or Cold Water Jacketing,Flow / No Flow Switches,
MaintenanceEasy With Zero Leakages
MaterialPTFE,PP,PVDF,AISI 316L,AISI 304,AISI 316,Alloy 20,Hastelloy C,PTFE,PP,PVDF,AISI 316L,AISI 304,AISI 316,Alloy 20,Hastelloy C,Cast Iron,PTFE,SS304,SS316
ConstructionHeavy Duty For Severe Industrial Application

Conforms to API 675 standard
Very Economical.
Heavy duty construction designed for severe industrial application.
Easy to maintain with zero leakages.
Hydraulically Balanced Sandwich (Double) Diaphragm with Rupture Detection.
Integrated hydraulic relief and bleed valve
Turn down ratio 10:1
Repeatability +3%
Linearity +3%
Accuracy up to ± 1%
Stroke volume adjustment range: 0 – 100%
Stroke volume adjustment: manually using scaled rotary dial (with electric actuator or control drive as an option).
Available in variable / fix stroke.
Available with jacketing molten liquids.
Modular Configurations: Simplex, Duplex, Triplex and Quadriplex Reagent head: PTFE, PP, PVDF, AISI 316L, AISI 304, AISI 316, Alloy 20, Hastelloy C
Check Valves: PTFE, PP, PVDF, AISI 316L, AISI 304, AISI 316, Alloy 20, Hastelloy C
Metal Gearbox: Cast Iron
Diaphragm: PTFE / Metallic (SS304/SS316)
If required by user, this Pump can also be supplied with suitable followed accessories.
Chemical Flow Meters
Ex. Pressure relief valve (PRV)
Back pressure Valve
Anti Syphon Valves
Calibration Cylinders
Electronic remote stroke control for flow adjustment
Rota Meters
Suction strainer
Pulsation Dampeners
Low Level Switch
Hot or Cold water Jacketing for liquid end for cooling or heating
Flow / No Flow Switches
Control Panels
VFD (AC Speed Drives)
PLC fitted SCADA based Panels
Level Sensors
Tank Agitators
On Line Static Mixers
Integrated pH-ORP-Chlorine-TDS Controllers and sensors
Tank Level Indicators.
