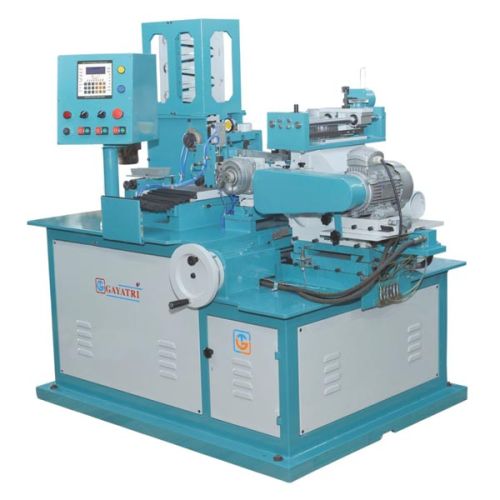

GCGM-200 Fully Automatic Cot Grinding Machine

Use InTextile Industry
ConditionNew
TypeFully Hydraulically
PackagingPacked in good quality boxes
Supply TypeManufacturer, Supplier, Retailer
Preferred Buyer Location All over the world

Fully Hydraulically operated suitable to grind RIF and SIF top rollers on Centreless Grinding Attachment with 200 mm. wide emery controlled by digital electronic timer to set grinding time for arbour and for replacing fresh arbour to be ground having surface finish/accuracy as per international standards. Draw Frame and Comber rollers are grinded between centre by the help of MT 2 dead centre with 25 mm. wide emery. Vibration free design for high accuracy, more productivity and less maintenance.

View More Details

Send Enquiry

Technical Specifications

Model	GCGHY - 200 - AF	GCGHY - 200	GCGH - 200	GCGC – 25
Operating System	Auto Feeding	Semi Automatic	Manual	Manual
Production Per Hour	325 - 350 Arbour	275 - 300 Arbour	225 - 250 Arbour	-
Centreless Attachment For R/F & S/F	Pneumatically Adjustable Grinding Time	Hydraulically Adjustable Pressure & Grinding Time	Manual	-
Longer Roller Link Comber / Draw Frame etc.	Grinding Between Centres, Taper Grinding System Provided form Comber Detaching Roller
Grinding Accuracy & Surface Finish	± 0.01 Ra Value < 0.5 umm
Lubrication System	Centralise System By Manual Pump
Connected Electric Load	3.3 KW (4.5 HP) 3 Phase
Dust Extraction	Provided Separately
Compressed Air Pressure	6- 10 Bar
Grinding Wheel Dimensions	Ring & Speed Frame - 250 O/D X 150 I/D X 200 Wude Longer Roller - 250 O/D X 150 I/D X 25 Wide			250 P/D X 150 O/D X 25 Wide
Working Range Min. Dia Max. Dia Max. Length	Ring & Speed Frame Draw Frame/ Comber Roller 26 MM 20 MM 38 MM 100 MM 190 MM 500 MM
Weight Net/ Gross Kgs	1200/1600	1100/1500	1100/1500	950 /1350
Size of Case Machine Dust Extraction	160L X 130W X 160H cms 110L X 81W x 15H cms
