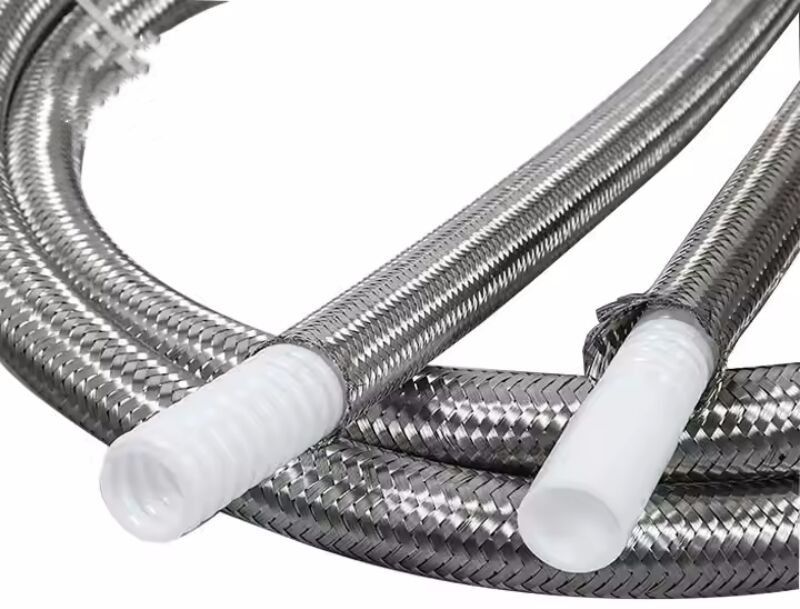

Hydraulics Flexible Stainless Steel Braided Hose

₹ 91 / 50 Meter

MOQ1 Meter
Product NameSAE 100r14 Hydraulic Hose
Tube100% PTFE Resin
CoverAISI 304 or 316 Stainless Steel Wire Outer Braid
Model NO.R14
Supply TypeManufacturer
Preferred Buyer Location China only

Construction:Tube:100% PTFE resinCover:single or double AISI 304 or 316 stainless steel wire outer braidAPPLICATION:Design being used in automotive, fluid handling, chemical transfer,....

Product Details

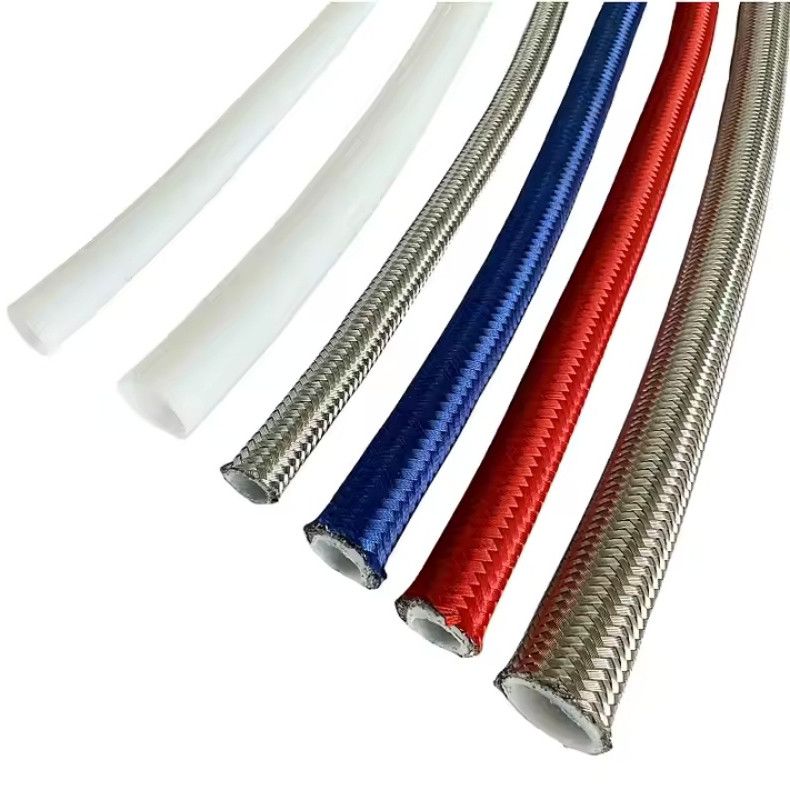

Construction:
Tube:100% PTFE resin
Cover:single or double AISI 304 or 316 stainless steel wire outer braid
APPLICATION:
Design being used in automotive, fluid handling, chemical transfer, paint,pharmaceutical, food & beverage processing, cosmetics and general-purpose applications.

Item code	Size	I.D		O.D		Wall Thickness	W.P		B.P		Minimum Bending Radius
Item code	inch	mm	inch	mm	inch	mm	psi	bar	psi	bar	mm
SR14-35	1/8"	3.5	0.138	6.6	0.26	1	4733	326	14613	1007.76	51
SR14-48	3/16"	4.8	0.189	8	0.315	0.85	3579	247	10738	740.52	75
SR14-64	1/4"	6.4	0.252	9.2	0.362	0.85	3106	214.2	9658	666.06	81
SR14-80	5/16"	8	0.315	11	0.433	0.85	2781	191.76	8682	598.74	92
SR14-97	3/8"	9.7	0.382	12.8	0.504	0.85	2736	188.7	8223	567.12	131
SR14-127	1/2"	12.7	0.5	15.9	0.626	1	1568	108.12	6818	470.22	182
SR14-160	5/8"	16	0.63	19.2	0.756	1	1878	129.54	5650	389.64	211
SR14-190	3/4"	19	0.748	22.7	0.894	1.2	1154	79.56	3979	274.38	338
SR14-222	7/8"	22.2	0.874	26	1.024	1.2	887	61.2	2884	198.9	421
SR14-250	1"	25	0.984	29.3	0.154	1.5	592	40.8	2263	156.06	539
SR14-500	2"	50	1.969	55.6	2.189	2	444	30.6	1775	122.4	1015

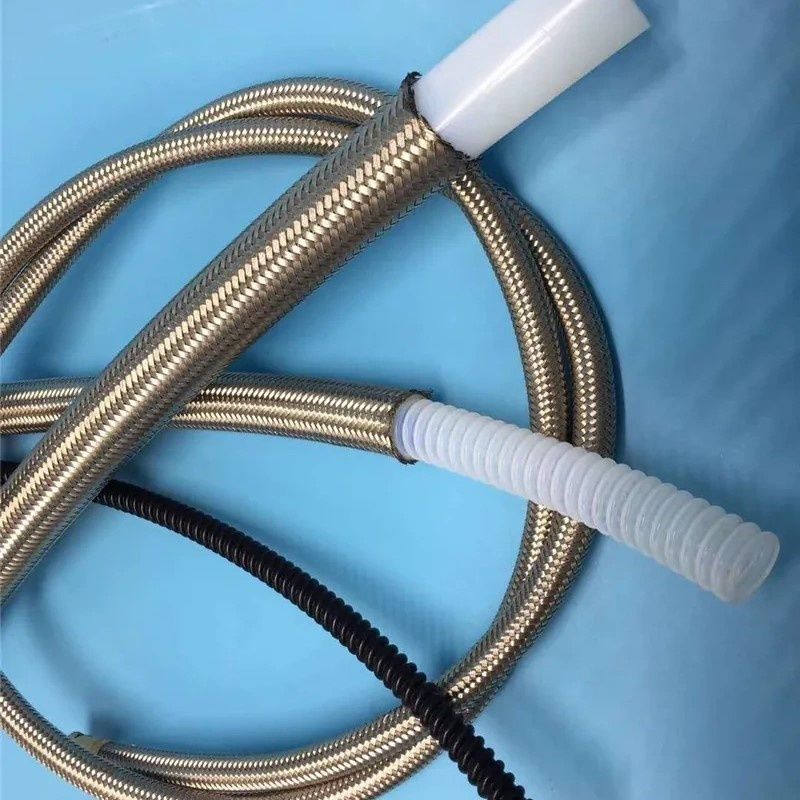

Inner Convoluted Hose
Construction:
Tube:100% PTFE resin
Cover:single or double AISI 304 or 316 stainless steel wire outer braid
APPLICATION:
It features excellent flexibility and kink resistance for superior performance in chemical transfer, high temperature hydraulics, and hose applications requiring tight routings, high temperature media transfer and general-purpose applications.

Item code	Size	I.D		O.D		Wall Thickness	W.P		B.P		Minimum Bending Radius
Item code	inch	mm	inch	mm	inch	mm	psi	bar	psi	bar	mm
CR14-065	1/4"	6.5	0.256	11.5	0.453	0.8	1923	133	5546	382.5	20
CR14-08	5/16"	8	0.315	12.3	0.484	0.65	1923	132.6	5324	367.2	25
CR14-10	3/8"	10	0.394	14.2	0.559	0.65	1849	127.5	5177	357	33
CR14-13	1/2"	13	0.512	17.2	0.677	0.85	1627	112.2	4881	336.6	42
CR14-16	5/8"	16	0.63	21.6	0.85	0.9	1183	81.6	3560	244.8	60
CR14-19	3/4"	19	0.748	25.3	0.996	1	1036	71.4	3108	214.2	63
CR14-25	1"	25	0.984	31	1.22	1	740	51	2219	153	79
CR14-32	1-1/4"	32	1.26	39	1.535	1.1	710	48.96	2071	142.8	125
CR14-38	1-1/2"	38	1.496	45	1.772	1.45	636	43.86	1775	122.4	145
CR14-50	2"	50	1.969	60	2.362	1.5	503	34.68	1479	102	180
