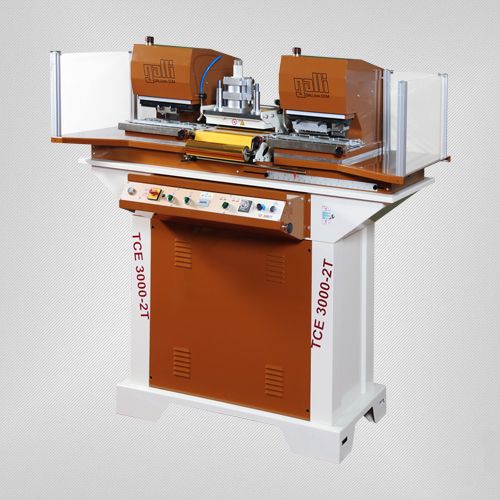

Hydro Pneumatic Tip Cutting Machine, Voltage : 400V / 50Hz / 3 Phase

₹ 1 / 12 Piece

Voltage400V / 50Hz / 3 Phase
Optional Add-onsOptical Positioner, Mechanical/micrometric Stroke End, Waist Belt Kit, Universal Safety Barriers
SafetySeat Belts, Optional Barriers
Waste ManagementSpare Exhaust Exits
Supply TypeManufacturer, Supplier, Importer
Preferred Buyer Location India only

Company Information

Member Since 2 Years
Nature of Business Manufacturer
GST No. 27AAACH2731C1Z5

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Voltage400V / 50Hz / 3 Phase
Installed Power2.7 KW
Pneumatic Power900 KG
ControlElectronic Unit Opening
Max Opening Test1600 Mm
Work TableSelf-centering
CountingIntegrated Piece Counter
Opening Guides5 - 125 Mm
SafetySeat Belts, Optional Barriers
Optional Add-onsOptical Positioner, Mechanical/micrometric Stroke End, Waist Belt Kit, Universal Safety Barriers
Weight465 KG
Hydraulic Power3000 KG
Tool Length280 Mm
Waste ManagementSpare Exhaust Exits
Machine TypeTip Cutting And Stamping
LightingLED Lamp
Dimensions160 X 75 X 150 Cm
Print Area210 X 110 Mm
Work UnitsOrientable (version G)
TechnologyHydraulic + Pneumatic

Description

Heavy-duty tip cutting machine designed for belts and leather strips. Combines hydraulic and pneumatic power for precision cutting and stamping. Features dual cutting units, pneumatic printing, self-centering belt system, and orientable work units (version G). Includes LED lighting, piece counter, and electronic work unit opening. Optional kits available for enhanced positioning, safety, and multi-material handling.
