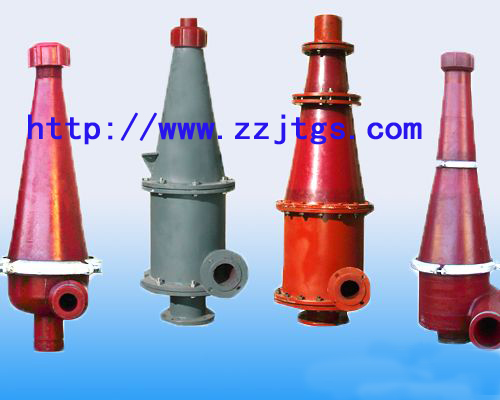

Hydrocyclone

the hydroclone uses cyclonic separation which is a method of removing particulates from a water stream, without the use of filters, through vortex separation. rotational effects and gravity are used to separate mixtures of solids and fluids.
a high speed rotating water flow is established within a cylindrical or conical container called a cyclone. air flows in a spiral pattern, beginning at the top (wide end) of the cyclone and ending at the bottom (narrow) end before exiting the cyclone in a straight stream through the center of the cyclone and out the top. larger (denser) particles in the rotating stream have too much inertia to follow the tight curve of the stream and strike the outside wall, falling then to the bottom of the cyclone where they can be removed. in a conical system, as the rotating flow moves towards the narrow end of the cyclone the rotational radius of the stream is reduced, separating smaller and smaller particles. the cyclone geometry, together with flow rate, defines the cut point of the cyclone. this is the size of particle that will be removed from the stream with a 50% efficiency. particles larger than the cut point will be removed with a greater efficiency, and smaller particles with a lower efficiency.
model allowed oil pressure reliefï¼?mpaï¼? processing capacity(t/d) overfall granularity(mm) weight(kgï¼?
ï¿ 100 0.05-0.3 25-40 0.025-0.25 31.3
ï¿ 125 0.05-0.3 40-60 0.025-0.25 87
ï¿ 150 0.05-0.3 80-120 0.025-0.25 105
ï¿ 200 0.05-0.3 150-250 0.025-0.25 125
ï¿ 250 0.05-0.3 250-350 0.025-0.25 151
ï¿ 300 0.05-0.3 350-450 0.025-0.25 280
ï¿ 500 0.05-0.3 450-600 0.025-0.25 718
more information you may email to jintai666(at)gmail(dot)com or go to http://www(dot)zzjtgs(dot)com .zhengzhou jintai mineral processing equipments co., ltd is a professional&strong manufacturer,providing all kinds of beneficiation equipments with favorable prices and high quality.we are manufacturer so that we can also design the product according to your requirements.we expect your inquiries.our fax number is 0086-371-68723618. our phone number is 0086-371-68713618 or 0086-13383821961.
