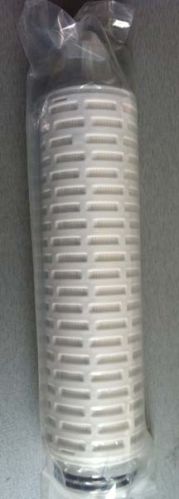

Hydrophobic PTFE Pleated Membrane Filter

The Hydrophobic PTFE Pleated Membrane Filter that we make available is widely known for its superb performance and inclined durability. We can deliver small as well as bulk orders of Hydrophobic PTFE Pleated Membrane Filter within the promised time period.
Details :

• Model No : APM-PTFE-02-10-DOE

• Place of Origin : Zhejiang,China (Mainland)

• Name : Hydrophobic PTFE Pleated Membrane Filter

• Material : Hydrophobic PTFE

• Length : 10",20",30" &40"

• Micron Rating : 0.1um,0.22um & 0.45um

• Configuration : DOE,P2,P3,P7 &P8

• Gasket : Silicon, EPDM, PTFE encapsulated Viton

Payment & Shipping Terms :

• Unit Price : 30.0~35.0 USD

• Trade Term : FOB

• Payment Term : L/C, T/T

• MOQ : 50 Piece/Pieces

• Means of Transport : Ocean, Air

Supply Capacity :

• Production Capacity : 10000pcs

• Packing : Individual box and two.

• Delivery Date : 25-30 days

Highlights :
Hydrophobic PTFE Pleated membrane filters designed for removal of microorganisms and particles in aqueous liquids and solvents. APM-PTFE filters' asymmetric PTFE membrane provides absolute retention with superior flow rates and extended service life.Hydrophobic PTFE Pleated membrane filters

Features :

• Absolute ratings from 0.1µm to 0.5µm

• Meets bacterial validation per HIMA/ASTM standards

• Air Vent

• Ultraclean - no additives, surfactants or post-treatments

• 100% integrity tested

• Integrity testable in water

• Inherently hydrophilic membrane

• Clean room manufactured

Applications :
General Industry,Pharmaceutical & Biological industry, Chemical Industry,Process Water

Absolute-rated PP Pleated membrane filters

Model : PNM-(A)-(B)-(C)-(D)

• A: Micron Rating

  • 0.1,0.22,0.45,1,5um

• B. Length

  • 5",10,20",30" & 40"

• C: Connector

  • DOE
  • S2C (222+Close )
  • S2F (222+Fin )
  • S6C (226+ Close )
  • S6F (226 + Fin )
  • S5C (225 + Close )
  • 1S5C (215+ Close )
  • CSS ( Install Stainless Steel )

• D: O Ring

  • S ( Silicon )
  • E (EPDM)
  • V ( Viton )
  • N (NBR )
  • PV (PTFE+VITON)
