Hype-cut Series 2d High-power Laser Cutting Machine

We offer laser cutting machine.

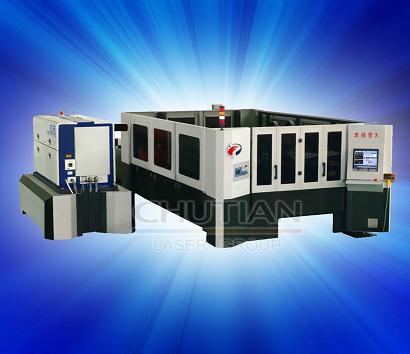

HYPE-CUT Series
HYPE-CUT Series is our classic model of 2D high-power laser cutting machine equipped with Blade or Compact Laser Source.
HYPE-CUT CNC Laser Cutting Machine has numerous characteristics: small thermal distortion cutting, high cutting precision, narrow cutting slot, smooth cutting surface, fast cutting speed, high cutting quality, low noise, pollution-free, no damage to the artifacts, not effected by materials to be processed and shape of the artifacts, less use of material and cost of die, faster speed in developing new products and auto-cutting.
Technical Specification
Parameters
Model:HYPE-CUT3015 HYPE-CUT4020 HYPE-CUT6020
Traveling Range:3000mm×1500mm 4000mm×2000mm 6000mm×2000mm
X、Y Position Accuracy:±0.03mm/m ±0.03mm/m ±0.03mm/m
X、Y Repeatability:±0.01mm ±0.01mm ±0.01mm
Maximum Rapid Speed:85m/min 70 m/min 70 m/min
X Traveling Range:3000mm 4000mm 4000mm
Y Traveling Range:1500mm 2000mm 2000mm
Z Traveling Range:150mm 150mm 1500mm
U Travel:6000mm
Output Power Option:1000W / 2200W / 3000W / 5000W
Laser Source Power Consumption:10KVA / 23 KVA / 30 KVA / 50 KVA
Dimension:9200×3050×1900mm to 11200×3660×1900mm
Weight:12.5T 14.5T 16T
