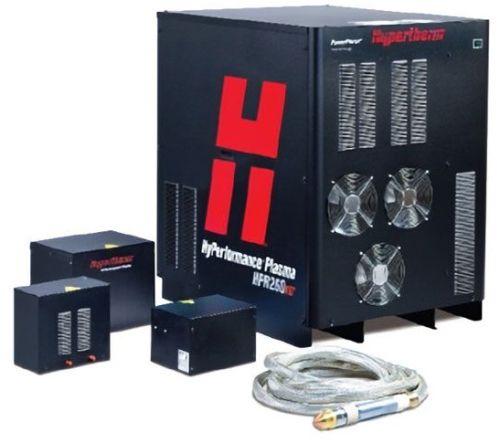

The HyPerformance® HPR400XD plasma system has been designed and built for maximum performance and productivity in x-y, bevel and robotic cutting operations. The versatile 400-amp rated system combines fast cutting speeds, rapid process cycling, quick changeovers and high reliability, and delivers the ultimate in HyPerformance mild steel cutting, plus aluminum capability and unmatched stainless steel cut quality. Characteristics: HyPerformance plasma cuts fine-feature parts with superior quality and consistency HyDefinition® technology aligns and focuses the plasma arc for more powerful precision cutting up to 80 mm (3.2 ") New HDi™ technology delivers HyDefinition cut quality on thin stainless steel, with extremely sharp top edge quality, shiny surface finish, and superior angularity with reduced angle variation Patented True Hole™ technology (auto gas systems only) produces hole quality that is significantly better than anything previously achievable with plasma
| Name | Data | Data |
|---|---|---|
| Model | HyPerformance HPR200XD | |
| Mild steel cut capacity | Dross free/Production pierce/Maximum cutting capacity | 38 mm (1-1/2")/50 mm (2")/80 mm (3.2") |
| Stainless steel cut capacity | Production pierce/Maximum cutting capacity/Severance | 45 mm (1-3/4")75 mm (3")/80 mm (3.2") |
| Aluminum cut capacity | Production pierce/Maximum cutting capacity | 45 mm (1-3/4")/80 mm (3.2") |
| Speed (Mild steel) | Book specification at highest output current | 12 mm (1/2")/4430 mm/m/(170 ipm) |
| Cut angle | ISO 9013 range* | 2-4 |
| Weldability | Ready to weld | |
| Mild steel cut capacity | Mild steel/Stainless steel/Aluminum | 02/Air, 02/02, Ar/Air/H35/N2, N2/N2, H35-N2/N2, F5/N2,Ar/Air, Ar/N2/H35/N2, Air/Air, H35-N2/N2, Ar/Air, Ar/N2 |
| Process amps | Not all processes available for all materials | 30-400 |
