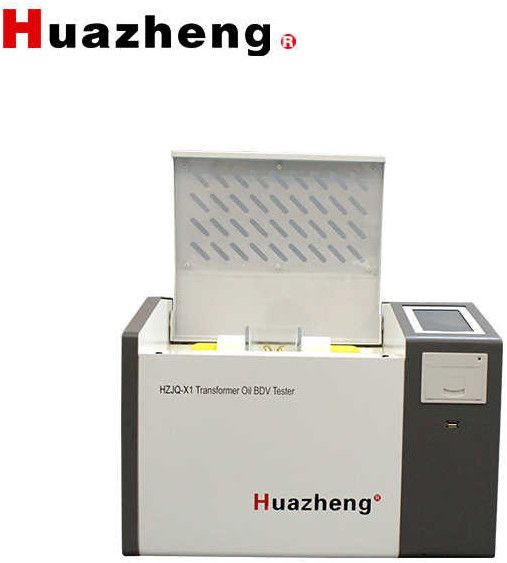

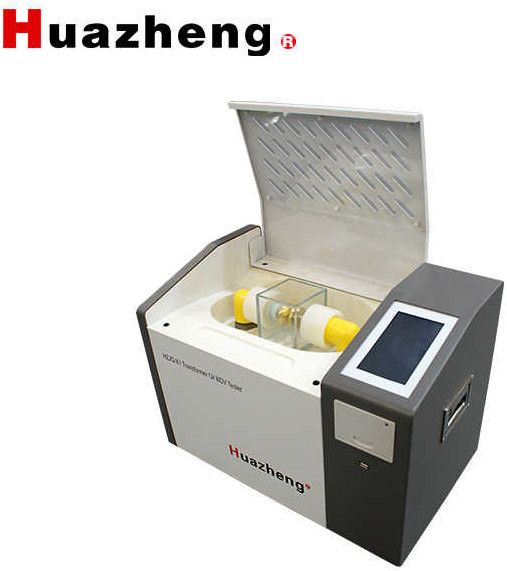

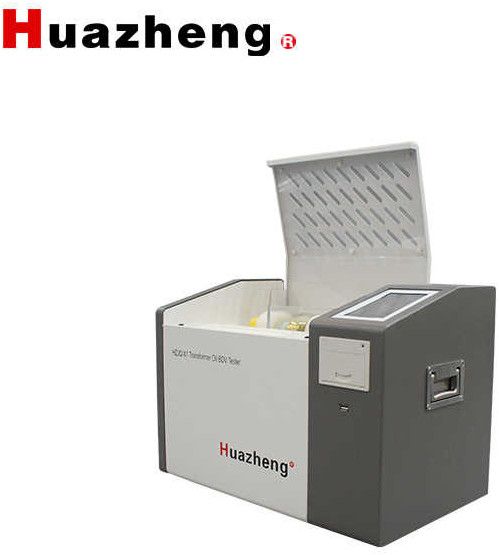

HZJQ-X1 80kV Transformer Oil Bdv Breakdown Voltage Tester

TECHNICAL INDICATORS

1,Output voltage: 0～80KV

2,Voltage distortion rate: ＜3%

3,Booster capacity: 1.5KVA

4,Measuring accuracy: ±3％

5,Supply voltage: AC220V±10% 50Hz±1 Hz

6,Power: 200W

7,Applicable temperature: 0℃～45℃

8,Applicable humidity: ＜75%RH

PRECAUTION

1. The selection, placing and electrode distance of the oil sample before testing shall meet relevant national and industrial standards.

2. The operators or other personnel are strictly forbidden to touch the casing after the power is switched on to avoid accidents.

3. The power shall be cut off immediately if any abnormal event is found during the operation.

4. New oil cup or cleaning the oil cup should be 24 times breakdown after test execution. When oil cup don't do experiments should use clean oil immersion
