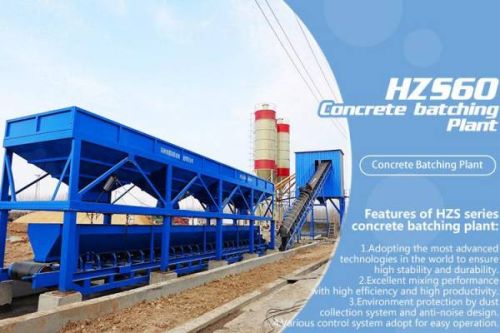

HZS60 Concrete Mixing Plant

The theoretical productivity of hzs60 concrete batching plant equipment is 60 cubic meters per hour; 60 mixing station host is the js1000-type forced mixer, and the nominal capacity is 1000l. Moreover, the batching capacity of dosing machine is 1600l; screw conveyor maximum productivity is 80t h; the aggregate maximum particle diameter is 80mm and aggregate capacity is 51 cubic meters. On one hand, cement weighing range and accuracy is (0 ~ 900) ± 1% kg, and admixture weighing range and accuracy is (0 ~ 20) ± 1% kg. Aggregate weighing range and accuracy is 0 × 3000 ± 2%. On the other hand, it is easy to maintain the equipment, and can be equipped with the independent control room to the performance, so that the equipment is easy to operate and safe, and it can produce high quality and high efficiency concrete in the condition of accurate measurement of the batching machine. In addition, the use of the belt conveyor system and waiting for the warehouse containing cleaning equipment with handrail walkway, which is convenient and timely cleaning inspection, and it is conducive to the maintenance of equipment.
Performance characteristics
1. Using modular structure. It’s easy to transport because of installation and removal quickly. With a variety of layout, which can meet the requirements of different venues.
2. The mixing host uses js1000 twin shaft concrete mixer with stirring good quality and high productivity. It can complete a good mixing in the ideal time for dry hard, semi-dry hard, plastic and a variety of concrete.
3. All the measurement unit of the measurement elements and control components are imported components with computer control, which is fully guaranteed measurement accuracy and stable performance.
