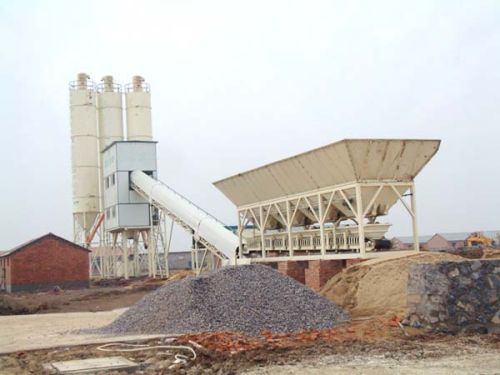

HZS75 Concrete Mixing Plant, Brand Name : RP

We are offering hzs75 concrete mixing plant.
Main technical parameters of hzs75 concrete mixing plant hzs75 concrete mixing plant is composed of material supply, batching system, mixing, electrical control and steel structure. Concrete mixers is ideal concrete equipment for building project, building ground and precast product factory. Our company design the concrete mixing plant based on more than 20years experience, proved by global market customers, our design is scientific, economical , and minimize the mechanic damage.
the main characteristic is:
0.the machine adopts js1500 concrete mixer, it has good mixing quality and high efficiency.
0.the batching machine adopts pld2400q-iv, it is measuring nicety and high produce efficiency.
0.the forced water supply system spray equably and has washing function for the mixing system.
theoretical production rate
m3h
75
discharge height
m
3.8
mixer model
js1500
power of mixing plant
kw
2×30
theoretical production cycle
s
60
volume of mixer weighed outlet
l
1250
maximum aggregate size
mm
80
volume of powder bin
t(ρ=1.35)
80×2
volume of aggregate bin
m3
8×4
type of aggregate
4
installed capacity
kw
100
weighing scope and measuring accuracy of aggregate
kg
(0～3000)±2%
weighing scope and measuring accuracy of
cement
kg
(0～1200)±1%
weighing scope and measuring accuracy of
coal ash
kg
(0～500)±1%
weighing scope and measuring accuracy of
water
kg
(0～500)±1%
weighing scope and measuring accuracy of
additive
kg
(0～50)±1%
we customized to your favorite colors and configurations according to your project demands. Send us your demand today!
