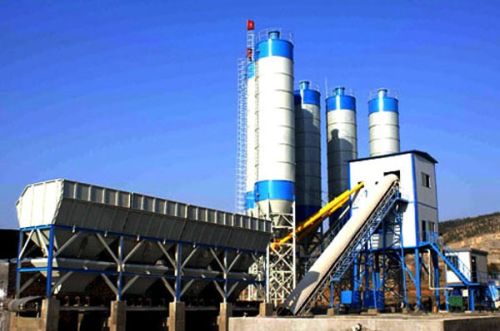

Hzs90 Ready Mix Concrete Plant

hzs90 ready mix concrete plant
description of ready mix concrete plant:
hzs series of ready mix concrete plant, also named as concrete batch plant, is developed by our company on the basis of adopting the world's sophisticated technologies, this concrete mixing plant have been widely used in the domestic and overboard, as well as earned a perfect reputations in the construction field, we have dedicated in manufacturing concrete mixing plant for many years.
features of ready mix concrete plant:
1. driving system adopts planetary gear, the gimbals transmission shaft insures circumgyrate at the same speed
2. with its modularization structure, it is easy to transport, install and debug more quickly.
3. mixing system choose the spiral mixing system , which has high efficiency , scale board and mixing blades adopts high-rigidity and high tenacity wearable case alloy steel, to prolong the working life.
4. aggregate lifting appliance adopts frequency control, thus providing smooth and reliable operation.
5. lubrication system adopts advanced centralized oil lubricating system, convenient for oil supplying, this system is equipped with overvoltage warning and low oil level warning, safe and reliable
6. pc+plc control system ensures the high reliability.
7. with its virtue of precise computation, it can meet the requirement of every high performance concrete.
8. human-based intelligent control facilitates the operation greatly.
9. structural members are durable, and most electric elements adopt world famous brands.
application of ready mix concrete plant:
available for many applications, this stationary concrete batching plant is widely used for water conservancy ,electric power, railroad, road, tunnel , the arch of bridge, harbor-wharf and the national defense-project etc..
technical parameters of hzs90 ready mix concrete plant:
capacity: 90 m3/h
mixing time: 60 s
max aggregate size: 60/80 mm
discharging height: 3800 mm
total power: 110 kw
total weight: 60 ton
total dimensions: 38500×12000×19400 mm
1. mixing system
twin shaft concrete mixer: js1500
volume: 2400l
capacity: 1500l
mixing blade: 2×9 pcs
mixing speed: 23 r/min
mixer motor: 45kw
weight: 10960kg
dimensions: 5058×2250×2440mm
2. aggregate system
2.1 aggregate batcher: pld2400
volume: 4×12 m3
capacity: 144 m3/h
power: 11kw
weight: 7610 kg
dimension: 10120×3320×3820mm
2.2 aggregate belt conveyor: 1 unit
belt width: 1000 mm
belt speed: 1.6 m/s
power of motor: 37 kw
3. cement system (optional)
3.1 cement silo: 4 units
capacity: 100t×4=400t
silo diameter: φ3000
3.2 cement screw feeder: 4 units
diameter: φ273mm
length: 9m
4. additive system (optional)
additive silo capacity: 1m3
pneumatic valve: φ50 mm
pump: 2×3kw
5. water system
motor power: 7.5 kw
butterfly valve: φ150 mm
capacity: 150m3/h
6. air system
air compressor: 1unit
power: 11 kw
pressure: 1.0 mpa
air flew: 1.2m3/min
7. weighing system
7.1 aggregate weighing: 1 unit
weighing capacity: 4000kg
precision: ±1%
7.2 cement weighing: 1 unit
weighing capacity: 1000kg
precision: ±1%
7.3 water weighing: 1 unit
weighing capacity: 400 kg
precision: ±1%
7.4 additive weighing: 1 unit
weighing capacity: 50 kg
precision: ±1%
8. control system
plc command and control operation.
main electrical components: schneider or simense
17’’ colorful computer
manuel and auto control is freely changeable .
