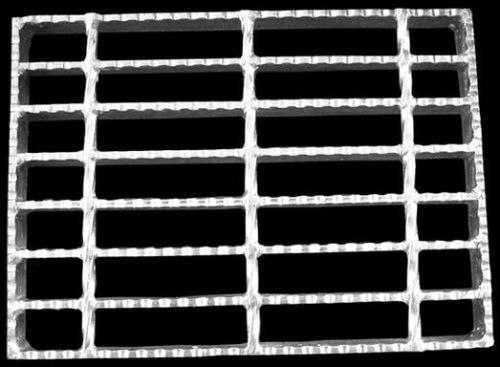

I Bar Grating

I-Bar Grating is with a shape of “I” bar, which is more humanistic to let some tenuous things go through. I-bar grating is also with the process of swaging, which makes it beautiful. The I-bar type and the swaging process make I-bar grating much lighter than swaged aluminum grating, as I-bar is lighter than ordinary flat bar.
With the narrow space between I-bars of 11.1mm, 33.3mm etc, it is more reasonable and humanized for some tiny things like high-heeled shoes to walk through. There are four types for I-bar at present, which are 50.8*6.35, 25.4*6.35, 26.8*6.35, 31.75*6.35, with born striated flanges on the surface of the I-bars which makes it anti slip to be suited for metal grating floor requiring skid resistance. You are welcomed to require for other types for I bar. Spaces for bearing bars could be 11.11mm, 33.33mm, and other spacing referring to swaged aluminum grating, while the same cross bar spacing with swaged aluminum grating. I-bar grating can be called catwalk grating or sidewalk grating for its characters. So I-bar grating is ideally suited in some catwalk, walkways and platforms etc.
Metal Grating Floor Types Available:
Flat surface I-bar grating with max length of 7500mm & max width 1500mm
Serrated surface I-bar grating with max length of 7500mm & max width 1500mm
Other sizes according to customers’ requirements
Aluminum Floor Grating Finishes available:
Mill Finish
Clear Anodizing
Powder Coating
I Bar Grating Applications:
Sun shade Building facade Fencing Desktop
Catwalk Walkway Floor grates Platform
Stair tread Truck grilles Decorative grilles aluminum drainage grates
