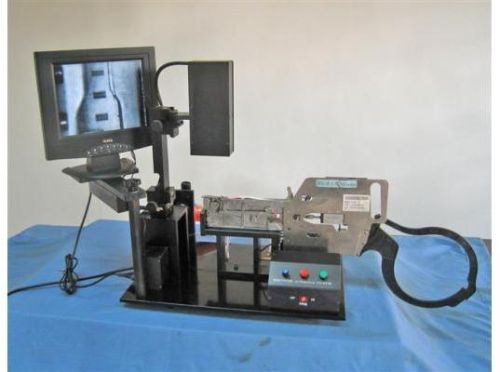

I-pulse F1 Feeder Calibration Jig

We offer i-pulse f1 feeder calibration jig
1, simple structure, easy operation, function optimization. And the use of high-precision 0 gap guide, to ensure positional stability, greatly improve work efficiency
2, accurate detection. Reclaimer position, height, strut height can be done accurately measured. To better grasp the quality status;
3, the use of 10 'color led display, led lighting ring, 50 times magnification ccd camera, making more compact structure, beautiful. Effectively reducing eye fatigue, improve the quality of work;
4, easy to operate, and can simulate the placement machine, automatic continuous observation reclaimer position, a clearer grasp feeder continuous operation quality, and thus more effective control of polishing material ratio;
5, you can choose a variety of models such as fuji cp6, yamaha, sanyo; panasonic, universal, sony; juki; samsung;
6, the functions and features:
1. Precise xy axis adjustment;
2. Axis camera can be directly adjusted;
3. 220v24v dc power supply;
4. Black and white cross reference cursor;
5. Automatically step function;
6. Bright led display;
7. Precise control fixtures feeders;
8. Precise 8mm,12mm,16mm and 24 mm feeders control band.
uses for : feeder calibration jig for calibration of various models
power supply: 220v24v
compressed air requirements: 5kgcm2
dimensions: l500mm * w 350mm * h550mm
weight: about 35kg
