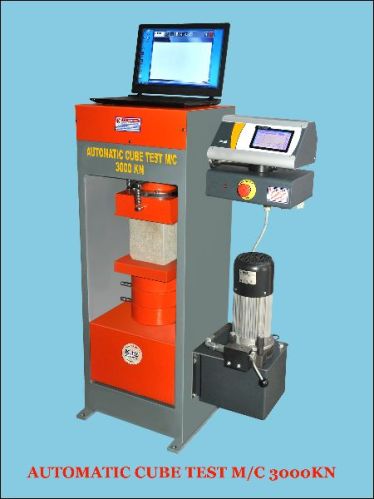

AUTOMATIC CUBE COMPRESSION TESTING MACHINE 3000 KN

specification :

• k.j.e. Smart automatic compression testing machine 3000kn is frame. ( both in and is standards.) .
• portable  control unit.
• comprehends: control head and hydraulic power unit. 230v/50-60hz/1ph .
• along with load  pressure transducer 0-700 bar
• automatic pace rate control variable .
• large touch screen display with both numeric and graphical with so many parameters inputs.
• lan port for pc connection and usb port for easy data storage on pen-drive.
• advanced electronics ensuring superior precision and high stability -effective resolution.
• compatible with 82-sw/dm data manager software for real time acquisition and management of test data (optional).
• second frame option 50-k.n.
• it can control flexural and compression testing frame from 15 to 4000 kn cap.

hydraulic:
dual stage pump with ac drived  motor, energy saving technology to reduce the power consumption and ensure silent operation.
hardware:

100,000 points effective resolution, touch screen graphic display 150 x150 m.m. L, sampling rate 50/sec, large storing capacity on usb pen drive downloadable to pc, ethernet port, real time management software (optional).

software :
simultaneous display of load-specific load, actual load rate and load/time graph; lan connection to pc; advanced memory management; multi coefficient calibration.

• available in all ranges 100, 250,500,1000,2000,3000 kn, also attachable flexural test.
• testable specimens, cube moulds, 50x50, 70.6x70.6, 100x100,150x150, 200x200 mm, cylinder moulds 100x200, 150x300 mm, rectangle moulds etc….
• operates on single phase 240 volts supply.
