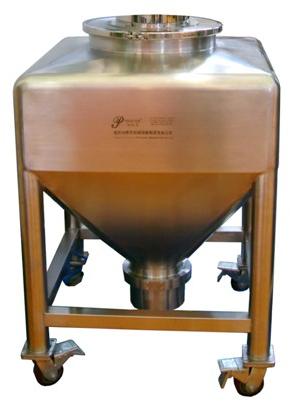

Ibc Revolving Mobile Storage Bin, Brand Name : Partek

we are offering Ibc Revolving Mobile Storage Bin.
Introduction
IBC Revolving Mobile Storage Bin series are developed by our company,through absorbing advanced pharmaceutical production technology of Western European countries.It can be used for the transfer of closed production process material of pharmaceutical companies..
1, The storage bin is made of high quality austenite 304 or 316L stainless steel.
2, The appearance is square conical shaped, all corners are cambered without dead angle and residual,and the appearance is attractive.
3, Both inside and outside surface are highly polished, inner surface roughness can be achieved with Ra ≤ 0.2μm, while outer surface roughness can reach Ra ≤ 0.4μm.
4, Special bucket covers and butterfly valves are equipped with silicone seals to guarantee sealing.
5, All welds are carried out groove processing, rubdown and polished after double-sided argon arc welding, and the welding quality is in line with JB4708 and JB4709 standards.
6,Protecting clean ground areas from being damaged with special trundle, leaving no trace.
7, The storage bin has sufficient strength, therefore deformation will not come out.
Appearance structure diagram:
参数(Parameter)
型号(Model) 容积(Volume) A B C D H H1 H2 H3 H4 重量
weight
IBC200 200L 800 430 250 60° 970 54 100 740 160 120 Kg
IBC300 300 L 800 430 250 60° 1120 54 250 740 160 140 Kg
IBC400 400 L 800 430 250 60° 1270 54 400 740 160 160 Kg
IBC500 500 L 1000 430 250 60° 1270 52 200 644 158 190 Kg
IBC600 600 L 1000 430 250 60° 1370 52 300 644 158 220 Kg
IBC800 800 L 1000 430 250 60° 1570 52 500 644 158 260 Kg
IBC1000 1000 L 1200 560 300 70° 1540 78 420 643 203 300 Kg
IBC1200 1200 L 1200 560 300 70° 1680 78 560 643 203 330 Kg
IBC1500 1500 L 1200 560 300 70° 1890 78 770 643 203 390 Kg
IBC1800 1800 L 1200 560 300 70° 2100 78 980 643 203 450 Kg
IBC2000 2000 L 1200 560 300 70° 2240 78 1120 643 203 520 Kg
