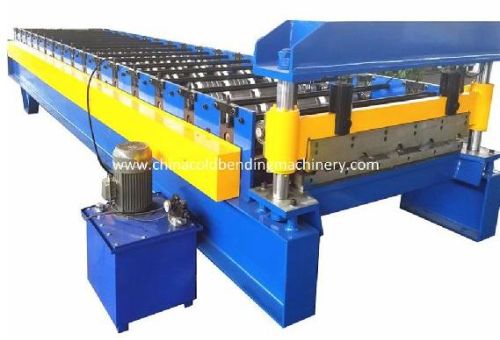

IBR Panel Roofing Roll Forming Machine

IBR Panel Roofing Roll Forming Machine How to choose a high quality IBR Panle roofing roll forming machine ? Check the material of the base frame , the brand of PLC control box and the material of the shaft and rollers . Because the rigidity of the base frame can effect the stability of the roll forming machine for roof .  The plc control box is very important to the whole IBR panel sheet roll forming machine . It controls every production part of the roll forming machine . So we need to confirm whether the PLC control box from a regular manufacturer of famous brand .The rolls and shaft effect the flatness of the metal roofing panel , so be carefully very the material of the shaft and rollers . Technical parameters:a . Material speciafication : colored steel sheet , galvanized steel sheet  b .Thickness of coil sheet : 0.3-0.8mmc . Forming speed : 8-15 meter min  d .Hydraulic station power : 5.5kwe . Main motor power : 5.5kw   f .Voltage : at buyers requiremeng . Controlling system : PLC Hydraulic cutting system : Hydraulic Cutting with two Guide Pillars and two cylinders . Forming rollers  Specification: 45# steel, CNC Lathes, heat treated   Feature: hard chrome plating, 0.05 mm Main frame specification: 400 H steel . Thickness : 16mm   feature: More stable, no shaking Guide device It is used to control the width and position of the steel sheet.
