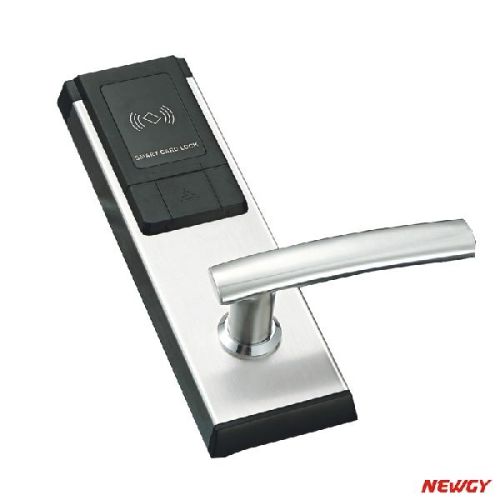

IC Card Lock

Hotel lock performance index
sus304 stainless steel material.
Five latch mortise, deadbolt function, high security.
Power supply: 4 standard aa alkaline batteries.
American (ansi) mortise.
Adopt mifare one contactless rf card as keycard.
Battery life: 3 years in normal state, depending on both usage and climatic conditions.
Mechanical when power voltage is less 4.5v, there will be warning when unlock the lock can still be unlocked about 50 times before the batteries are replaced.
Door thickness requirement: 35mm to 60mm.
Mechanical key: the separate emergency mechanical structure will allow the unlocking by the mechanical key in emergency.
Sliver color and gold color for choice.
Hotel lock technical parameters
1) lock type: rf card lock
� electronic key: nxp mf1ics50, mifare? intelligent card.
�� international standard: iso14443-a.
�� encrypting: 48 bits card special logic key encrypting and system data des encrypting.
�� power supply: 4 pieces aa alkaline batteries.
�� mechanical life normal operation times�100000.
