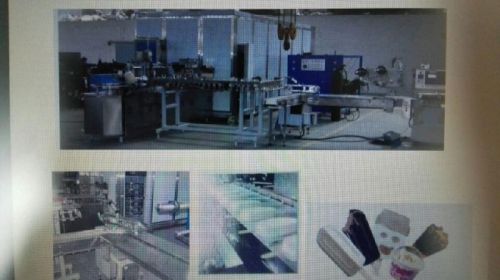

Ice Cream Extrusion Machine

A) Major machine list: Item Name Specification QTY 1 BBX-600Ice-cream Extrusion Line (Freon Refrigerant) Capacity (max): 90pcs/min(sliced ice cream) Function Unit� 1) Vertical extrusion and cutting 2) Stick insert 3) Tap Tray for ice cream separating with Tray 1set 1set 1set 2 High of Space of 2 Chains 180mm 3 Hardening Room 1) Stainless Steel Plate Outside & Inside 2) Polyurethane Foam, and thickness 150mm 3) Size�6�3.2�3.3m 1set 4 Stainless steel machine Frame 1) Driven unit installed inside 2) Chain wheel, chain wheel seat and tension seat etc are made of Stainless Steel. 3) Tray rail is made of low-temperature polyethylene material 1set 5 Chain tension mechanism� Air-bags Tension 2set 6 Splint Stainless steel�width95.25mm� 1set 7 Evaporator 1) Stainless Steel Shell 2) Evaporator area 600m2/set 3) 4motors�motor power2.2KW 1set 8 Conveying tray Stainless steel�250�186�1.5mm ab600pcs 9 First machine Part 4.8M 1set 10 Electric Control 1) PLC�Touch Screen 2) Cutting�extractor controlled by servo motor and servo driven Panasonic Brand 1set 12 Air Cylinder Made in China 13 Extractor 1) Stainless Steel machine Frame 2) Chocolate coating and heating tank�motor agitator� 3) Clip 132pcs/set 4) With chocolate temperature controlling 1set 14 Mold and Dispenser 1set 15 Overall Machine Size 10.8�3.2�3.3M B) Refrigeration System: Power: 30 HP BITZER SCREW refrigeration Quantity: 2 set C) Water Tower: Flow of Water tower: 80T/H D) Water Pumps: � � � � � Power of Pump: 7.5KW and 4KW Quantity: Water Pumps 2 piece E) Packing Machine: Material: Stainless Steel Quantity: 1 set Technical parameter Max packing speed (bag/minute)��160 packing size (mm)���� ��L:150~250 W:35~100 H:20~50 Maximum width of film(mm) �350 Electric Power�������� 2.25KW Heater Power�������� 1.5KW Rated voltage�������� 220V/50HZ Rated frequency���� ��50HZ Weight of the machine��� 100
