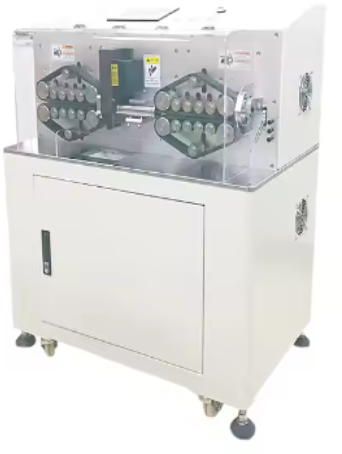

IE- 150 Automatic Wire Cutting & Stripping Machine

₹ 6.86 Lakh / Piece

Automatic GradeAutomatic
ConditionNew
Power SourceElectric
Country of Origin220V
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Sector 63, Noida, Uttar Pradesh

4.0/5

Member Since 7 Years
Nature of Business Supplier
GST No. 09AVMPA7464P1ZT

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

ConditionNew
Automatic GradeAutomatic
Power SourceElectric
Country of Origin220V
Availability270 Kgs
Max Cutting Speed600-2000pcs/H (L within 200mm)
UsageIndustrial
Stripping Length Head Stripping0.1-500 mm, End Stripping: 0.1-250 mm
Dimensions760 x 470 x 480 mm
Warranty1 Year
Rated CurrentAC220V 50/60HZ
Packaging TypeCarton Box, Wooden Box
Catheter OD Size30mm, 24mm, 19mm, 12mm, 9 mm
Tool MaterialsImport Tungsten Steel or Quick-cutting Steel
Display Mode7 inch English/Chinese Interface LCD display
FinishingPolished
Cutting Length30 mm- 99999.9 mm
Power SupplyAC110~220V/(50Hz/60Hz)
Power ConsumptionAC220V 50/60HZ
Conductor TypeCable, PVC, Sheathed Wire, Multi-core Sheathed Wire Etc.
Air Consumptionno
Cutting Accuracy50/60HZ
Model NumberIE- 150
PhaseSingle Phase
Motor Speed600-2000pcs/H (L within 200mm)
Cutting ToleranceWithin 0.002 x Lmm L=Cutting length
Cutting Frequency220v

Product Description

150mm2 Large Cable Cutting Stripping Machine

Introduction:

This machine can automatically cut and strip large cable or electrical wire, suitable for big cable(large as 150mm2).

Product details:

Name	Automatic Large cable cutting stripping machine
Model	SR-150
Display	Touch screen
Applicable cable	6-150mm2
Cutting length	30-99999.9mm
Cutting tolerance	0.002*cutting length
Stripping length	Front 0.1-300mm, end 0-150mm
Voltage	AC220V 50/60HZ
Catheter diameter	Max 30mm
Suitable cable	Cable, sheath cable, BV hard wire, BVR soft wire, etc.

Features and advantages:

(1)The fully automatic large cable cutting stripping machine is a new generation of wire harness processing equipment, using servo motor for drivers.

(2)Adopt advanced man-machine interface, humanized design, easy to operate.

(3)The processed wire harness has the same length, beautiful appearance and good effect.

(4)Blade: High-quality imported high-speed steel, or tungsten steel.

(5)Efficiency: 600-2000pcs/H depends on the size and length of cable.

(6)Drive mode: 8-wheels drive,total 28 wheels.

(7)Feeding node: Belt feeding, no embossing and scratches on the cable.

(8)Special cables, special requirements can be customized, need to send sample for testing.

(9) Suitable forpower industry, electric control cabinet, battery box line, new energy vehicle wiring harness, charging pile wiring harness, charging gun wiring harness, BV hard wire, BVR soft wire, etc.
