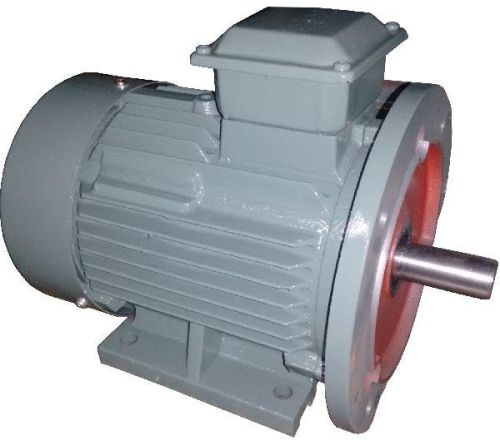

IE3 Cast Iron Frame Three Phase Motor

With our modern transportation amenities, safe and on-time deliveries are rendered by us! In order to deliver an exceptional lot of products, we make use of the finest grade material for producing them. As a result, the finished products comply with high-quality standards. The IE3 Cast Iron Frame Three Phase Motor is acclaimed for their high-quality and sturdy make.

Details

• Electric Motors - Premium Efficiency - IE3-Cast Iron Frame
• Three-phase. multivoltage, IP55. TEFC
• 0-55-200kW

More Details

• Brand -  Yinda
• Warranty -  12 Months
• Packing for Frame size 80-112 -  Honeycomb Carton
• Packing for Frame size 132-315 -  Sealed
• plywood case

Product Description
Typical Applications -

• Pumps
• Fans
• Crushers
• Conveyor belts
• Mills
• centrifugal machines
• Presses
• Elevators
• Packaging equipment
• Grinders and others

Standard Features -

• Three-phase, IP55. TEFC
• Premium efficiency - complying with lE3 efficiency levels according to lEC60034-30
• Output -  0,55 up to 200kW
• Number of Poles -  2, 4 and 6
• Frames -  80 up to 315
• Mounting -  B3
• Voltage -  220-240/380-415V / 380-415/66OV
• Class “F" insulation (ΔT = 80K)
• Continuous duty -  S1
• Ambient temperature -  40 °C, at 1000 m.a.s.l
• Squirrel cage rotor I Aluminium die cast

For additional details about Inverter operation, please contact our technical support.
Optional Available -

• Frequency -  60 Hz
• Other voltages
• Thermostats or RTD-PT 100 on winings and bearings

Thermal protection -

• Additional terminal box
• Double shaft end
• Encoder
• More Options available, on request
