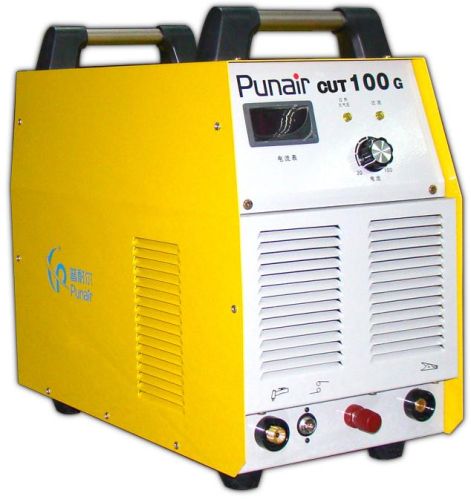

IGBT Inverter Plasma Cutter(Cutting Machine100)with Aluminium Alloy and Digital Display

We are offering IGBT Inverter Plasma Cutter(Cutting Machine100)with aluminium alloy and digital display.
Features:
1. Optimized Layout Structure Design with High Inverter Frequency & High Duty Cycle; Substantial Energy Consumption Savings
2. Smaller, Lighter and Easy to Carry on; Especially Adaptable to the Welding Application in the Field Operation
3. By comparison to the gas cutting machine, the plasma cutting is featured with the advantages of low-costs and quick cut ability
4. By comparison to the traditional cutter, it is featured with high-ignition rate, high arc voltage, energy concentration, strong cutting ability, quick cutting speed, slim cutting line with smooth cut surface and tiny deviation in shape; stable voltage in big cutting current; especially adaptable in cutting the thickness plate, its cutting speed is much quicker and as quick as 2 to 3 times of the traditional cutter speed
5. Capable of cutting the metal in any direction and shape
6. Digital Display; Cutting Current can be continuously adjusted with clear and accurate reading
7. Built-in over-heat, over-current, over-voltage and less-voltage protection circuits, safe in operation
8. Adaptable to the welding application on the metal of carbon steels, stainless steels, alloy steels, aluminum, copper and so on
Application Fields:
* Extensive application, suitable for cutting different shapes, and pre-processing for the welding
* Suitable for cutting different kinds of metals
* Extensive application in the ship building, repairing & maintenance, metal structure construction, agriculture and air-conditioning industries
CUT100G Parameter
Input Voltage(V) AC380V±15% No-load Loss(W) 80
Frequency(HZ) 50/60 Efficiency(%) 80
Rated Input current(A) 23.1 Power Factor 0.93
No-load Voltage(V) 290 Insulation Grade F
Output Current Range(A) 20-100 Housing protection Grade IP21
Rated Output Voltage(V) 120 Net Weight(kg) 36.5
Arc Force(A) Transfer Dimension (mm) 580*340*500
Duty Cycle(%) 60
Product Purchase Guide
Base Material Welding method Plate thickness(mm) Current Range(A) Applicable Model
Carbon Steel CUT 1.0-60.0 20-160 CUT100G
Low- Alloy Steels
Stainless Steel
