Iic I2c Uart Interface Hf RFID Reader Modules

We are offering iic i2c uart interface hf rfid reader modules, rfid writer modules etc.

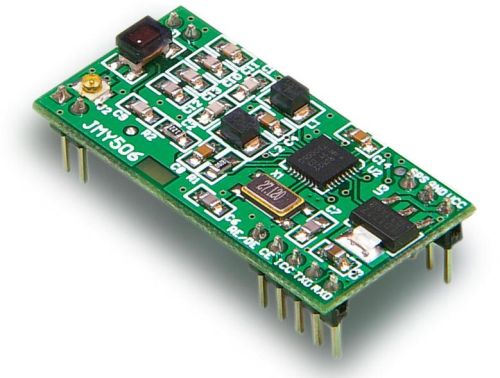

Jmy506 series are rfid readerwriter module with uart and iic serial ports. Jmy506 has various functions and supports multi isoiec standard of contactless card; the cards from different suppliers. The rf protocol is complex. But the designer combined some frequent used command of rf card and then user could operate the cards with full function by sending simple command to the module through iic or uart interface. And the module and antenna are separate design. The impedance between rf module and antenna was tuned by impedance analyzer. And then the module has excellent performance and stability. The module and antenna is linked by 50ohm coaxial line. The performance is good, though the wire can reach 10m. Normally the wire should be 60cm that is the module's best performance and stability.
qualifications:
•pcd: nxp rc522, rc523
•working frequency: 13.56mhz
•antenna connection: by 50ohm coaxial line, (recommend 60cm, max. 10 meters), due to order
•rf standard: iso14443a, iso14443b
•operating distance: 80mm(depending on card and antenna design)
•anti collision ability: full function anti collision; be able to process multi-cards simultaneously; be able to set operate single card only
•auto detecting card: supported, default off
•eeprom: 512 bytes
•interface: iic&uart(selected by sps pin, recommend to use iic)
•communication rate: iic--400kbps, uart--19.2kbps115.2kbps
•max.command length: 254 bytes
•interface level: 3.3v(ttl level; 5v tolerance)
•power supply: dc 5.0v
•power consumption: 50ma
•dimension: 42mm×21mm×8mm
•package: dip32
•weight: about 15g
•operating temperature: -25 ~ +85 ℃ (-77 ~ +185°f)
•storage temperature: -40 ~ +125 ℃ (-104 ~ +257°f)
•isp: supported
•rohs: compliant
