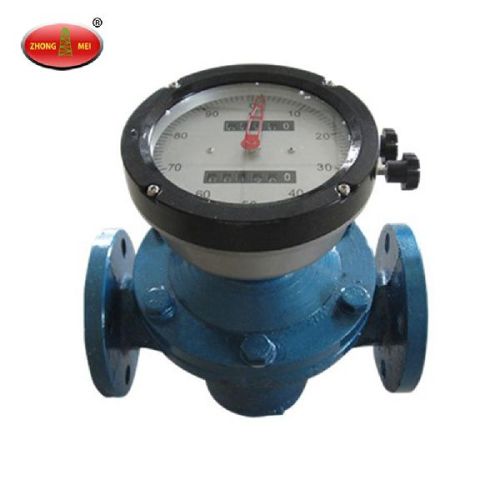

IK44 Mechanical Fuel Diesel Flow Meter

we provide service of enterprise's customs declaration, inspection, and are manufacture of measurement instrument include Air Flow Meter, Coriolis Mass Flow Meter, Emission Gas Analyzer, gas detector, Ultrasonic Flow Meter, Mass Flow Meter, Magnetic Flow Meter. Product Introduction Of  IK44 Mechanical Fuel Diesel Flow Meter Basic Info. Model NO.:K44 Type:Mechanical Flow Meter Measuring Principle:Mechanics Measuring Media:Liquid Certification:CE Accuracy:>± 1% Measurement Object:Closed Pipeline Application:Industrial Production Size:DN10-50 Main Application:Diesel Fuel Sensor:TubeFlange Color:Red , Black Export Markets:Global   Description: K44 flow meter is a nutating-disk meter that measures the exact quantity of the dispensed fuel or lubricant. It is designed for non-commercial use only. This flow-meter is reliable, inexpensive, easy to install and simple to calibrate on the workplace. The Pulser model is fitted with a pulse emitter for connection to a fuel management system. Thanks to reduced flow resistance, it can also function by gravity. Specifications: Flow-rate (range): 20÷ 120 lmin (5, 3÷ 32 galmin). Precision: ± 1% of flow range after calibration. Repeatability: 0, 2%. Max. Operating pressure: 10 bar (142 psi). Bursting pressure: 30 bar (426 psi). Readout system: K44, 4-digit subtotals (max 9999 litres), 7-digit totals. Resolution: 0.1 litre. Pulser card type: "Open collector", frequency: 10 pulseslitre, power supply: 6-24 V DC
