Imafit - Silicone Hose Reinforced with Polyester Braiding

Listing ID #3062575

550 / Meter

Get Latest Price

MOQ 10 Meter
Brand NameImafit™
MaterialSilicone
ColorTransparent
Place of OriginIndia
SizeAs per requirement
Supply Type Exporter

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

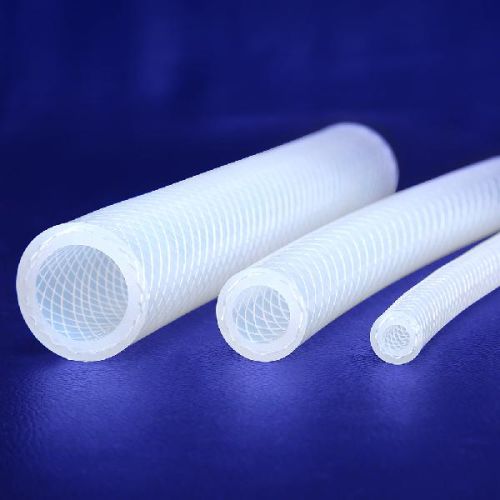

Imafit™ is platinum cured silicone hose reinforced with polyester braiding. It has excellent flexibility for pressurized fluid transfer application in pharmaceutical and biotech industries. We are catering these products to all pharma and biotech companies in India as well as Overseas market. Imafit™ hose is manufactured under stringent quality parameters to have greater flexibility and minimum bend radius.
Application :

Pharmaceutical and Biotech Material Transfer
Critical Liquid Transfer
Load Cell and Cell Cultures
Analytical Lab Food and Beverages
Biotechnology

Certification :

Conforms to US FDA 21 CFR 117.2600 Food Grade Standard
Conforms to USP Class VI
Conforms to ISO 10993-1
ROHS certified, free of restricted heavy metals
Free of Phthalate/Bisphenol/Volatile Plasticizer
TSE/BSE Certification
Complete validation package available upon request

Key Features :

NSF-51 certification on Platinum Cured Silicone Resin
Excellent flexibility
Manufactured from low volatile grade silicone resin
Imparts no taste and odor
Lot traceable
Temp Range :- -80°C TO 180°C
Available with SS316 L Tri-Clover end fittings in required length • Colored outer layer available
Custom color coding available
Sterilizable by Autoclave, Ethylene Oxide Gas Gamma Radiation

NOTE : Price vary as per ID OD of TUBE Hoses. Kindly email or call us for best available rate.
Visit us : http://www.amipolymer.com/imafit-polyester-braiding-silicone-hose.html

Technical Specification

PART NO.	SIZE IN MM (ID x OD)	SIZE IN INCH (ID)	MAX WORKING PRESSURE (IN BAR) @ 27oC	MIN BURST PRESSURE (in BAR) @ 27oC	BEND RADIUS (in MM)	VACCUM Hg @ 70oF/27oC (in MM)	ORDER IT
0613FT	6 x 13	¼”	12.5	48	50	NA	Send Enquiry
0916FT	9 x 16	11/32"	12	48	50	NA	Send Enquiry
1220FT	12 x 20	½”	12	45	80	NA	Send Enquiry
1624FT	16 x 24	5/8"	10	35	90	NA	Send Enquiry
1927FT	19 x 27	¾”	8	30	110	NA	Send Enquiry
2535FT	25 x 35	1"	6	30	160	NA	Send Enquiry
3242FT	32 x 42	1¼"	5.5	27.5	200	NA	Send Enquiry
3747FT	37 x 47	1½"	4.5	25	C/P	NA	Send Enquiry
5062FT	50 x 62	2"	4	22.5	C/P	NA	Send Enquiry
6476FT	64 x 76	2½"	3	20	C/P	NA	Send Enquiry

*Sandwich printing Technology in which fine layer of platinum cured silicone is applied over printed hose. It gives permanent print which avoids direct product contact.
*Laser Etched hoses for permanent identification on outer surface of hoses. It is for ease of product traceability.
*Available with Nylon braid reinforcement.
*Available with Bi color coding strips/lining for colour coding based product identification to avoid mix up while usage.

Additional Information

Port of Dispatch Mumbai
Packaging Details Manufactured and Packed in Clean Room. Price will be vary according to MOC and Size
