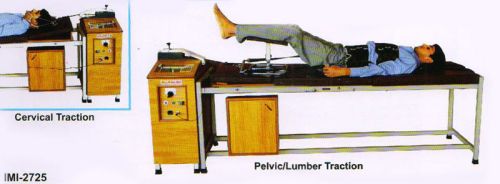

Contact SupplierAkay hi-trac, a micro-computer controlled unit with eight traction modes for lumber-cum-cervical traction is based on solid-state circuitry. the three section fixed height painted bed with storage cabin underneath is an integral part of the unit.
Techanical specification:
* therapy modes: eight traction modes for either lumber or cervical traction, in progressive, regressive, intermittent & static modes etc.
* memoryprogramme: "30" treatment patterns can be programmed & stored in non-volatile memory. (24 programmes are feeded and six programs are free).
* traction force: adjustable from 05 kg to 60 kg.
* base force: adjustable from 00 kg to 54 kg.
* traction hold time: adjustable from 00 to 99 sec
* base trac hold time: adjustable from 00 to 99 sec
* treatment time: continuously adjustable from 00 to 99 minutes, with acoustic signal & automatic reduction of traction force.
* displays: digital display of traction force, base force, tf hold time, bf hold time, treatment time & graphical display of trac. Mode.
* auto-tension-adjustment: the set traction force is automatically maintained throughout the operation.
Traction patient safety :
1, automatic system check in soft-ware on start of traction.
2, program error: error in programming is displayed signalled on the panel.
3, high force: high-force signal is activated if traction force is set for more than 18kg.
4, high-force acceptance: acceptance of high force is required before start of treatment.
5, automatic tension release when emergencies occur. Patient can stop with hand held switch.
* couchbed: fixed height-70mm, foam padded top is divided in three sections. Head section has an adjustable incline
* accessories: adjustable flexion stool, head-halter, pelvic & thoracic belts.
* power supply: 220-240 v ac. (use stabilizer).
