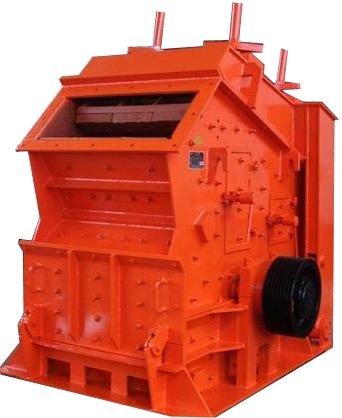

Impact Crusher

Application
1Impact crusher is applicable to crushing ore of various compressive strength levels; the breaker is ideal processing equipment for aggregate of top grade road surface and water and electricity construction.
2Impact crusher with excellent performance, counterattack breaker can be widely applied in expressway construction, hydraulic engineering, high speed railway and construction stuff and other relative industries.
3The impact crusher crushes materials with impact force. When the materials enter the working area, they are crushed due to the high-speed impact plate hammers of the rotor and are thrown to the impact plates on the rotor for secondary crush. This process repeats until the materials are crushed to the required size and discharge from the lower part of the machine.
4. General description of impact crusher
PF series impact crusher are designed for crushing ores and rocks with feeding size less than 350mm and compression strength no more than 350Mpa. Impact crusher has a feature of big crushing ratio, high-efficiency crushing, cubic shape, selectable crushing and etc. It is suitable for crushing different compression strength of rocks and is widely used in mining, cement and concrete industries.
Technical Data
Model Motor power (kw) Feed opening (mm) Capacity(t/h) Weight(kg)
PF-1007V 37-35 400×1080 30-50 9510
PF-1010V 55-57 400×1080 50-80 12120
PF-1210V 110-132 400×1080 70-120 14400
PF-1214V 132-160 400×1430 130-180 19580
PF-1310V 110-132 600×1100 80-120 14620
PF-1315V 180-260 860×1520 160-250 19800
PF-1520V 280-320 960×2020 280-350 35000
Notice: Any changes of the data above are subject to the products.
