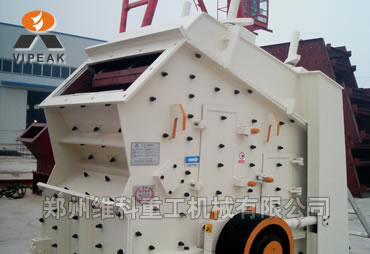

Impact Crusher

We are offering impact crusher impact crusher is used in both primary and secondary crushing applications of aggregate, and in recycle crushing of reinforced concrete, asphalt and other construction and debris. Vipeak is a reliable supplier of impact crusher with new design.impact crusher is composed of rotor, impact rack, frame, ratchet cover device, transmission device and other parts.
　　working principle of impact crusher: when the impact crusher works, the motor drives the rotor rotate of the impact crusher with high speed, on the rotor where installed the hammers. When the materials get into the area which the hammers affect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being re-crushed. The materials from large to small all to be crushed at the impact chamber repeatedly. The process won’t stop till the material are crushed to the required size and then discharged from outlet of the impact crusher.
　　characteristics of impact crusher:
excellent cubic final products
special structure
non-key connection
high chrome hammer
durability in long time simplicity in operation
easy adjustment, high reduction ration
good performance and high reliability
if you are interested in ,please visit our website:
model: pf-1007, pf-1010,pf-1210,pf-1214,pf-1315
max feeding size (mm):300, 350,400
capacity (t): 35-50, 50-80, 70-120, 80-180, 120-260
