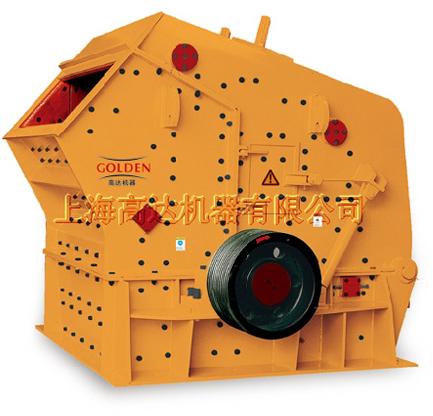

Impact Crusher

We are offering impact crusher.
Impact crusher is used in crushing all kinds of materials whose fineness is below 500mm,and the pressure resistance around 360mpa. It has the features of big crushing rate, efficient crushing, easy maintenance and cubic shape with final product. It is an ideal mining equipment for high road and water conservancy. With perfect features and good performance, impact crusher is widely used in high road consruction, water conservancy and construction process of gravel and so on. It has a better accability in granite,limestone and cobble,etc.
features and benefites
impact plate with a special shape,wear- resistant liner plate,specially in hard mining crush,high efficicency and reduction ratio.the final production is cubic shape,required adjustment the output feed fineness,simplifying the process of the crushing.
Structure features
1.big output opening,high crushing cavity,suitble in high hardness,big pieses and less power ;
2.the gap in the impact and the hammer plate can be adjusted,efficient control the output feed fineness, the final production has good shape;
3.tight strucure, good equipment rigidity,big rotational inertia;
4.high hammer plate,big impact resistance and wear resistance.;
5.no-board conection,easy maintenance and rellable operation;
6.full-featured,high-efficiency,small dentel wear and high overall efficiency.
Structure chart
technical parameters
pf-1007 φ1000×700 400×700 300 37-45 55 9.5 2400×1558×2660
pf-1010 φ1000×1050 400×1080 350 50-80 75 12.2 2400×2250×2660
pf-1210 φ1250×1050 400×1080 350 70-120 110 14.1 2690×2338×2890
pf-1214 φ1250×1400 400×1080 350 80-180 132 18.6 2690×2688×2890
pf-1315 φ1300×1500 860×1520 500 150-220 200 24 2860×2800×3050
pf-1316 φ1320×1600 1690×860 500 170-280 200 25.5 3096×2850×3050
