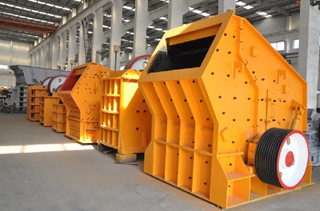

Impact Crusher

We are offering Impact Crusher.
working principle:
the impact crusher is to use impact energy to crush materials. when the impact crusher works, the motor drives the rotor to rotate with high speed. when the materials get into the area which the hammers affect, under the impact function of the hammer on the rotor at a high speed, the materials are thrown to the impact device continuously. and then the materials are rebounded from the impact liner to the area where the hammers effects for being recrushed, then discharged from the discharge port. users can adjust the space between impact rack and rotor, and then get to the expected size.
working condition:
the impact crusher has such advantages as: simple in structure, large crushing ratio, low energy consumption, high output, light weight, cubic final product, and it is used for medium and fine crushing medium, fine and medium-hard materials in mineral processing, chemical, cement, construction, refractory material, ceramics, and glass etc, like: limestone, clinker, slag, carbon coke, coal etc. the pf series impact crusher has larger crushing ratio, and can make full use of the high-speed impacting energy of the entire rotor. however, due to the blow bar is easily to wear, so it is restricted in hard materials. so impact crusher is mainly used in coarse, medium, and fine crush, such as, limestone, coal, calcium carbide, quartz, dolomite, sulfuration iron ore, gypsum, chemical raw material etc, under medium hard brittle material.
structure diagram:
features:
1. big feeding opening, high crushing cavity, suitable for materials with high hardness, large block, and few stone powers.
2. the gap between impact plate and blow bar can be adjusted, effectively controlling the material size discharged, with good particle shape.
3. compact structure, strong rigidity of machine, the rotor has a large rotational inertia
4. high-chromium blow bar has large impact, wear resistance.
5. the complete function of crushing, high productivity, small mechanical wear, and high comprehensive benefits.
6. no key connection, maintenance is convenient, economical and reliable
technical parameters:
model specification
(mm) feed size
(mm) maximum feed size
(mm) capacity
(t/h) power
(kw) overall dimensions
(mm) weight
(t)
pf-0607 ã�644ã�740 320x770 100 10-20 30 2010x1490x2600 6.5
pf-0807 ã¸850ã�700 400ã�730 300 15-30 30-45 2210ã�1490ã�2670 8.1
pf-1008 ã¸1000ã�800 400ã�830 300 30-50 37-55 2400ã�1558ã�2660 9.5
pf-1010 ã¸1000ã�1050 400ã�1080 350 50-80 55-75 2400ã�2250ã�2620 12.2
pf-1210 ã¸1250ã�1050 400ã�1080 350 70-120 110-132 2690ã�2338ã�2890 14.9
pf-1212 㸠1250x1250 400x1300 350 100-150 132-160 2690x2508x2890 16.3
pf-1214 ã¸1250ã�1400 400ã�1430 350 130-180 132-160 2690ã�2688ã�2890 18.6
pf-1310 ã¸1300ã�1050 490ã�1170 400 80-140 110-160 2780ã�2478ã�2855 21.2
pf-1315 ã¸1320ã�1500 860ã�1520 500 160-250 180-260 3096ã�3273ã�2667 24.3
pf-1415 ã¸1450ã�1500 1145ã�1520 950 220-450 220-315 3745ã�3022ã�3519 27
pf-1520 ã¸1520ã�2000 830ã�2050 700 300-550 315-440 3581ã�3560ã�3265 36.5.
