Impact Of Jet On Vanes Apparatus

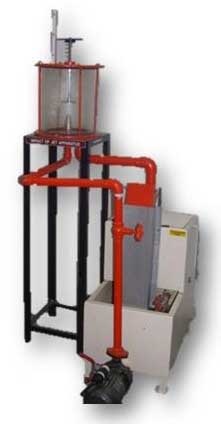

We are offering impact of jet on vanes apparatus. The impact of jet on vanes apparatus is designed to study the forced developed by a jet of water on different surfaces and to compare it with momentum theory. We use precision-engineered components and top quality parts in manufacturing the impact of jet on vanes apparatus, which add to its performance. The set up consists of visible test enclosure, supply tank, measuring tank and pump for closed loop water circulation. The visible test section housed one nozzle fitted in vertical upward direction to target the jet of water opposite an interchangeable test surface (either flat plate or a hemispherical cup) which in term is connected to a spring loaded stem. The lift of stem and weight added to the pan on other side gives the calculation of corresponding force. The flow rate of water is measured using measuring tank and stop watch provided. objective

• to study the force developed by impact of jet on different surfaces.

attributes

• visible test section
• closed loop water circulation
• compact & stand alone set up
• stainless steel tanks and wetted parts
• superb painted structure
• simple to operate & maintain

utilities required

• electric supply : 0.5 kw, 220v ac, single phase
• water supply tap water connection â½â€ bsp distilled water @ 60 liters (optional)
• floor area with drain facility

» technical detail
product jet on vanes apparatus test surface set of 2 flat plate & hemispherical cup nozzle material brass/ss enclosure clear acrylic supply tank capacity 85. Moc ss measuring tank capacity 40 liters moc ss fitted with piezometer tube & scale pump fhp capacity make tullu / crompton greaves piping gi / pvc stop watch electronic
