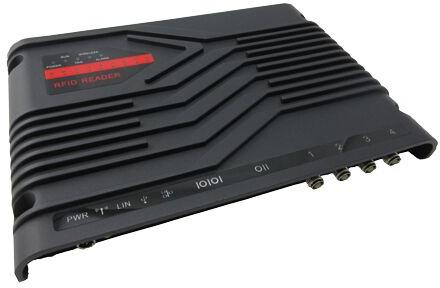

Impinj R2000 Long Range UHF RFID Reader For Inventory Mangement

We are offering
FEATURES
1. Self-intellectual property;
2. Designed with Impinj R2000 RFID engine;
3. Support ISO18000-6C(EPC C1G2) , ISO18000-6B protocol tag;
4. 860~868MHz902~928MHz(can be customized);
5. FHSS or Fix Frequency transmission;
6. RF output power up to 30dbm(adjustable);
7. 4 TNC antenna port with antenna auto-tuning and failure-detection;
8. Support auto-running, answer, trigger and real-time-inventory work mode;
9. Tag buffer size up to 800PCS (Max. 496bits EPC length);
10. Support EPC and TID inventory;
11. Low power dissipation with single +9 DC power supply;
12. Support RS232, RS485, RJ45(TCPIP) with WiFi and POE optional;
13. High reliability design;
14. Support on-the-site firmware upgrading and optional Wince or Linux Operation System.
Specification
Working frequency: 902-928MHz(can be Customized)
Interfaces: RS232, RS485, RJ45 ,GPIO, USB with WiFi and POE optional
Output Port: 4 TNC Antenna Port with antenna atuo-tuning and failure-detection
RF output power: 30dBi(Adjustable)
Protocols: ISO18000-6B, ISO18000-6C (EPC CLASS1 G2 )
Read Range: Depends on antenna gain
Write Range: Depends on antenna gain
Transmission mode: FHSS or Fix Frequency transmission
Working mode: Auto-running, answer,trigger-activating and real-time-inventory
Signal: Buzzer and LED
Storage temperature: -10- +55℃
Operating temperature: -20 +75℃
Item Size: 310mmx210mmx41mm
Net weight: 1880g
Application
It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system, etc.
