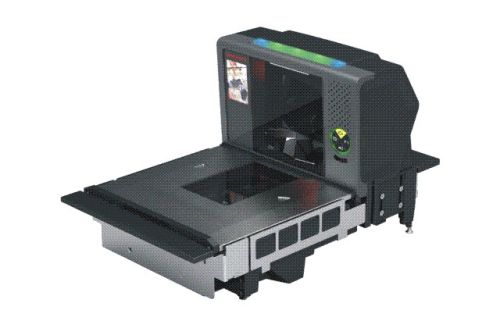

In-Counter Scanner

Physical Characteristics

• Dimensions:  292 mm x 178 mm x 104 mm
  Weight (Scale):  10.8kg (23.9 lbs)
• Glass Types:  Sapphire, Diamonex

Electrical

• Input Voltage:  5 VDC ± 0.25 V
  Operating Power:  10.2W (850mA @ 12vDC)

  Standby Power:  4.9W (410mA @ 12vDC)

  Host System Interfaces:  USB, RS232, IBM 46xx (RS485)

  Periperhal Interfaces:  2x USB, 1x RS232, Scale Display, Composite Video, EAS

  Camera Output Power:  3.6W (300mA @ 12VDC)

Environmental

• Operating Temperature:  0°C to 40°C (32°F to 104°F)
  Storage Temperature:  -40°C to 60°C (-40°F to 140°F)
  Humidity:  5% to 95% Relative Humidity, Non-Condensing
  Environmental Sealing:  IP42
  Light Levels:  0 to 80,000 lux (7,432 Foot-Candles)

Scan Performance

• Scan Technology Hybrid: Omnidirectional Laser + Area Image
  Sides Read / Scan Zone:  6 / 360
  Scan Pattern Laser: 192 total Scan Lines; Imager: VGA Image
  Scan Speed:  21,500 Scan Lines
  Resolution:  1D: 4 mil; 2D: 6.7mil
  Print Contrast:  25%
  Decode Capability:  Reads Standard 1D, GS1 Databar and 2D Symbologies

Electronic Article Surveillance

• Sensormatic:  Ultra•Max® Integrated EAS Antenna (Upgradable)
  Checkpoint:  Counterpoint & EVOLVE Integrated EAS Antenna

Scale

• Capacity:  0-6 kg x 0.002 kg; 6-15 kg x 0.005 kg; (0-15 lb x 0.005 lb; 15-30 lb x 0.01 lb)
  Communication Protocols:  Compatible with most Point of Sale Systems
  Approvals:  NTEP, OIML, CE
  Scale Compatability:  Mettler Toledo
