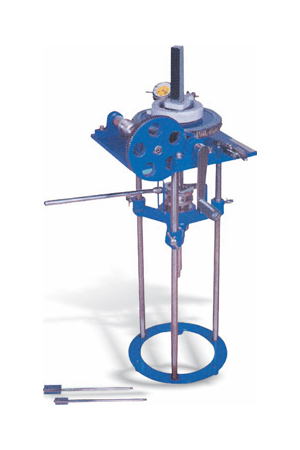

In-Situ Vane Shear Test Apparatus

Product Code: EKE 138
Standrad: Standard I S: 4434

This apparatus is designed for conducting in-situ vane shear test from the bottom of a bore hole in saturated cohesive deposits, for determining their in-place shearing resistance. The equipment consists of a torque applicator assembly mounted on a base. A gear wheel, which is marked in degrees, holds a torque ring and is geared to a crank. The torque ring has a section cut from it and deforms as torque is applied and the deformation is indicated by a dial gauge. A pointer is provided for registering the rotation of the vane. A detachable stand is provided to anchor the instrument. An attachment to securely hold the string of rods is provided. A calibration curve to convert the dial gauge readings to kg-cm of torque is also supplied.
